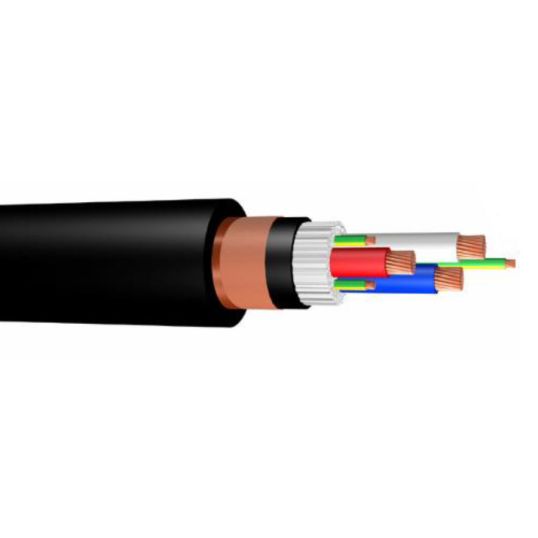

WWC Conflex Rigid VSD/EMC Cable Screened 3 Core & 3 Earth 240mm 0.6/1kV Bare Copper XLPE/Copper Tape/PVC Black

chevron-left
loader
Loading...

Description

chevron-down
Rigid VSD/EMC Cable, Screened, 3 Core & 3 Earth, 240 mm, Class 2 Stranded Bare Copper, 0.6/1 kV, 35 mm Earth Conductor, 52.9 mm Bedding Diameter, 58.8 mm Overall Diameter, Copper Tape Screen, XLPE Insulation, 5V-90 PVC Sheath, Red Blue White Green/Yellow Cores, Black Sheath, AS/NZS 5000.1

Key Specifications

chevron-down
SKU
WWC9424XCTPV
Brand
WWC
Range Name
Conflex
Product Type
VSD/EMC Cable Rigid

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Standard Pack Size 1
UNSPSC Class 26121600
UOM MTR
Vendor Product 9424XCTPV
Bedding Diameter 52.9 mm
Conductor Size 240 mm
Conductor Type Class 2 Stranded Copper
Core Colours Red/Blue/White/Green/Yellow
Earth Conductor Size 35 mm
Insulation Material XLPE
Number of Cores 3 Core + 3 Earth
Overall Diameter 58.8 mm
Screen Material Copper Tape
Sheath Colour Black
Sheath Material 5V-90 PVC
Standards AS/NZS 5000.1
Voltage 0.6-1 kV
