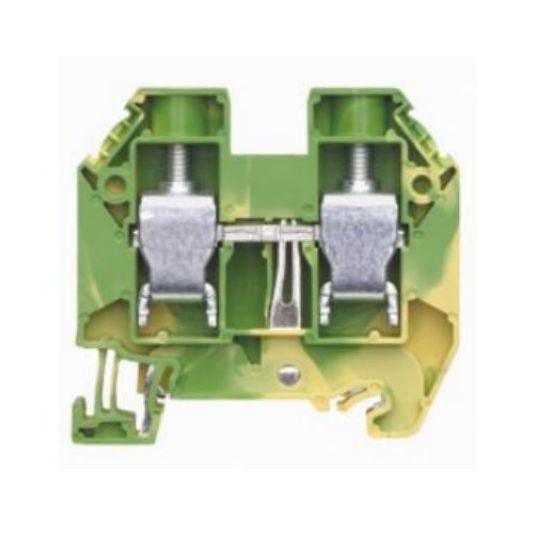

Wieland Rail Earth Terminal Block Screwed 2 Wire 1 Level 16mm Green/Yellow Thermoplastic
Loading...
Description
Rail Earth Terminal Block, 1000 Volt, Rated Surge Voltage: 8 kV, 16mm Conductor, 2 Conductors, Wire Strip Length: 15 mm, Tightening Torque: 2 N/m, Wiring Format: 2 Conductor Through, 1 Level, Screw Terminal, TS 35 DIN Rail Mount, Insulation Material: Thermoplastic, Green/Yellow, Flammability: V0, Height: 58 mm, 54 mm Width, 12 mm Depth
Key Specifications
| SKU |
WIE58.516.9055.0
|
|---|---|
| Brand |
Wieland
|
| Range Name |
Selos
|
| Product Type |
Rail Earth Terminal Blocks
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 100 |
|---|---|
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | 58.516.9055.0 |
| Colour | Green/Yellow |
| Conductor Size | 16mm |
| Flammability | V0 |
| Depth | 12 mm |
| Height | 58 mm |
| Insulation Material | Thermoplastic |
| Number of Levels | 1 |
| Number of Conductors | 2 |
| Mounting Method | TS 35 DIN Rail |
| Rated Surge Voltage | 8 kV |
| Terminal Type | Screw |
| Tightening Torque | 2 Nm |
| Voltage Rating | 1000 Volt |
| Width | 54 mm |
| Wire Strip Length | 15 mm |
| Wiring Format | 2 Conductor Through |
