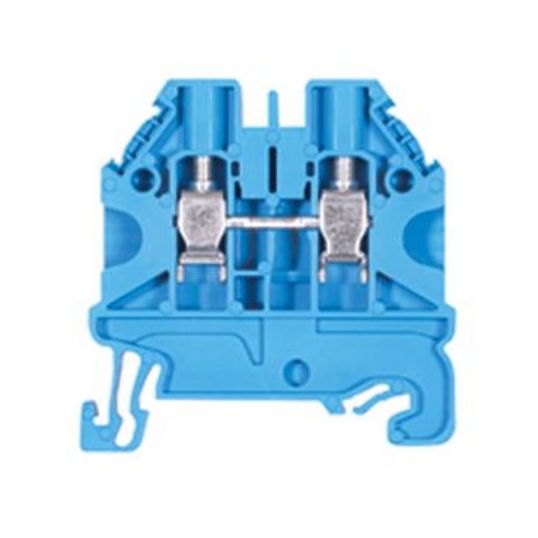

Wieland Rail Terminal Block Screwed 2 Wire 1 Level 16mm Blue Thermoplastic

Description

Rail Terminal Block, 1000 Volt, Rated Surge Voltage: 8 kV, 76 Amp, 16mm Conductor, 2 Conductors, Wire Strip Length: 15 mm, Tightening Torque: 2 N/m, Wiring Format: 2 Conductor Through, 1 Level, Screw Terminal, TS 35 DIN Rail Mount, Insulation Material: Thermoplastic, Blue, Flammability: V0, Height: 58 mm, 54 mm Width, 12 mm Depth

Key Specifications

SKU	WIE58.516.0055.6
Brand	Wieland
Range Name	Selos
Product Type	Rail Terminal Blocks

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	50
UNSPSC Class	39121400
UOM	EA
Vendor Product	58.516.0055.6
Colour	Blue
Conductor Size	16mm
Current Rating	76 Amp
Flammability	V0
Depth	12 mm
Height	58 mm
Insulation Material	Thermoplastic
Number of Levels	1
Number of Conductors	2
Mounting Method	TS 35 DIN Rail
Rated Surge Voltage	8 kV
Terminal Type	Screw
Tightening Torque	2 Nm
Voltage Rating	1000 Volt
Width	54 mm
Wire Strip Length	15 mm
Wiring Format	2 Conductor Through
