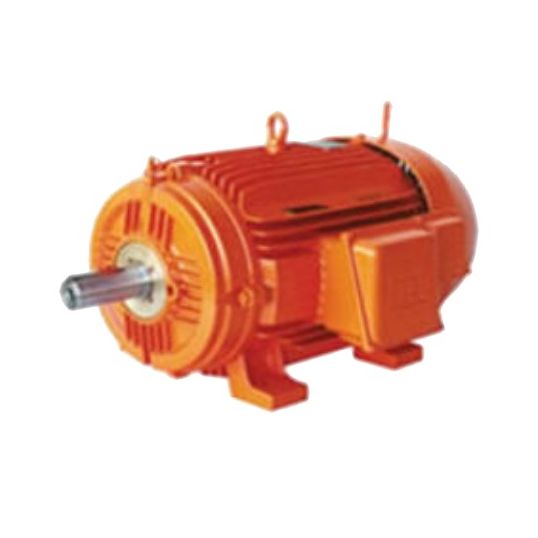

WEG Electric Motor Squirrel Cage Induction Mine Spec 8P 55kW 3Ph 415V 280S/M Frame Foot/Flange B35R(E) Mount

Description

Electric Motor Squirrel Cage Induction Mine Spec, 415 Volt AC, 94.6 Amp, 50 Hz, 3 Phase, 740 rpm, 55 kW Output, 8 Pole, IC411-TEFC Enclosure, IP66, Frame: 280S/M, 80 mm Shaft, Rotation: Both (CW and CCW), Power Factor: 0.75, Service Factor: 1.15, Roller Bearing, Direct On Line Starting, Torque: 710 N/m, Duty Cycle: S1, Foot/Flange B35R(E) Mounting, Insulation Class: H, Efficiency: 94.6%, Cast Iron Frame, Carbon Steel SAE 4140 Shaft, -20 to 40 deg C, 1253 mm Length x 752 mm Width x 696 mm Height

Key Specifications

SKU	WEGLTE44BPHEM
Brand	WEG
Range Name	WMining Series
Product Type	Motors SCIM Mine Spec

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	The W22 Mining motors can operate with high efficiency in the severest applications They have special mechanical characteristics that ensure durability, mechanical strength, and robustness in every step of the mining process from extraction and transportation to the ore processing Furthermore, they require low maintenance, significantly reducing undesirable downtime, and providing greater plant availability Totally enclosed fan cooled
Standard Pack Size	1
UNSPSC Class	26101100
UOM	EA
Vendor Product	LTE44BPHEM
Bearing Type	Roller
Current	94.6 Amp
Duty Cycle	S1
Efficiency	94.6%
Frame	Size 280S/M
Frame Material	Cast Iron
Enclosure Type	IC411-TEFC
Frequency	50 Hz
Insulation Class	Class H
Height	696 mm
IP Rating	IP66
Mounting Method	Foot/Flange
Number Of Poles	8 Pole
Output	55 kW
Phase	3 Phase
Power Factor	0.75
Rotation	Both (CW and CCW)
Service Factor	1.15
Shaft Material	Carbon Steel SAE 4140
Speed	740 rpm
Shaft Size	80 mm
Starting Method	Direct On Line
Temperature	-20 to 40 deg C
Torque Rating	710 N/m
Voltage	415 Volt AC
Width	752 mm
