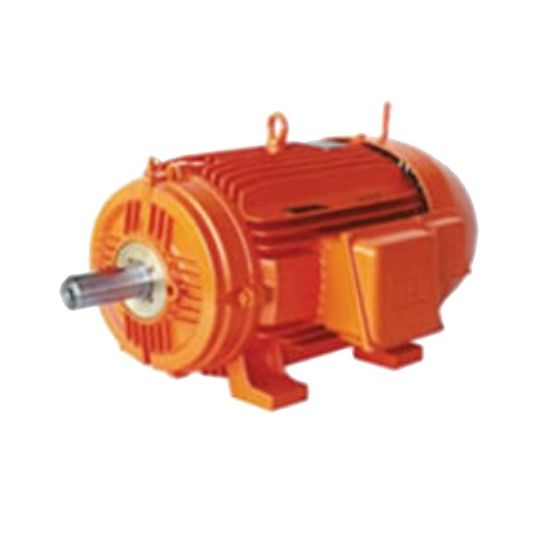

WEG Electric Motor Squirrel Cage Induction Mine Spec 4P 7.5kW 3Ph 415V 132M Frame Foot/Flange B35R(E) Mount

Description

Electric Motor Squirrel Cage Induction Mine Spec, 415 Volt AC, 13.7 Amp, 10 HP, 50 Hz, 3 Phase, 1460 rpm, 7.5 kW Output, 4 Pole, IC411-TEFC Enclosure, IP66, Frame: 132M, 38 mm Shaft, Rotation: Both (CW and CCW), Power Factor: 0.84, Service Factor: 1.15, Ball Bearing, Direct On Line Starting, Torque: 5.00 kgfm, Duty Cycle: S1, Foot/Flange B35R(E) Mounting, Insulation Class: H, Efficiency: 90.6%, Cast Iron Frame, Carbon Steel SAE 1040/45 Shaft, -20 to 40 deg C, 492 mm Length x 352 mm Width x 319 mm Height

Key Specifications

SKU	WEGLTE25PHEM
Brand	WEG
Range Name	WMining Series
Product Type	Motors SCIM Mine Spec

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	The W22 Mining motors can operate with high efficiency in the severest applications They have special mechanical characteristics that ensure durability, mechanical strength, and robustness in every step of the mining process from extraction and transportation to the ore processing Furthermore, they require low maintenance, significantly reducing undesirable downtime, and providing greater plant availability Totally enclosed fan cooled
Standard Pack Size	1
UNSPSC Class	26101100
UOM	EA
Vendor Product	LTE25PHEM
Bearing Type	Ball
Current	13.7 Amp
Duty Cycle	S1
Efficiency	90.6%
Frame	Size 132M
Frame Material	Cast Iron
Enclosure Type	IC411-TEFC
Frequency	50 Hz
Horsepower	10 kW
Insulation Class	Class H
Height	319 mm
IP Rating	IP66
Mounting Method	Foot/Flange
Number Of Poles	4 Pole
Output	7.5 kW
Phase	3 Phase
Power Factor	0.84
Rotation	Both (CW and CCW)
Service Factor	1.15
Shaft Material	Carbon Steel SAE 1040/45
Speed	1460 rpm
Shaft Size	38 mm
Starting Method	Direct On Line
Temperature	-20 to 40 deg C
Torque Rating	5.00 kgfm
Voltage	415 Volt AC
Width	352 mm
