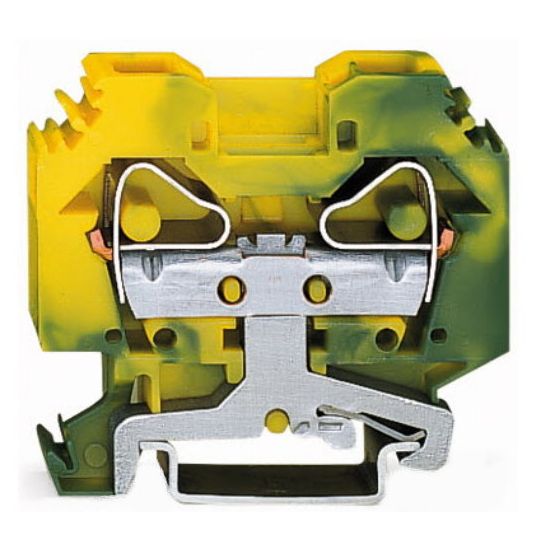

Wago Rail Terminal Block 2 Wire 1 Level 16mm Green/Yellow Polyamide 66

Description

Rail Terminal Block, 16mm Conductor, 2 Conductors, Wire Strip Length: 16 to 17 mm, Wiring Format: 2 Conductor Ground, Side Wire Entry, 2 Connection Points, 1 Potentials, 1 Level, Marking Position: Side, Actuation Type: Operating Tool, DIN-35 Rail Mount, Conductor Material: Copper, Insulation Material: Polyamide 66, Green/Yellow, Height: 58 mm, 45.5 mm Width, 12 mm Depth

Key Specifications

Barcode (EAN-13)	4045454084530
SKU	WAG283-107
Brand	Wago
Range Name	Cage Clamp Series 283
Product Type	Rail Terminal Blocks

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	50
UNSPSC Class	39121400
UOM	EA
Vendor Product	283-107
Actuation Type	Operating Tool
Colour	Green/Yellow
Conductor Material	Copper
Conductor Size	16mm
Depth	12 mm
Height	58 mm
Insulation Material	Polyamide 66
Marking Position	Side
Number of Levels	1
Number of Conductors	2
Number of Potentials	1
Mounting Method	DIN Rail
Number of Connection Points	2
Wire Entry Orientation	Side
Width	45.5 mm
Wire Strip Length	16-17 mm
Wiring Format	2 Conductor Ground
