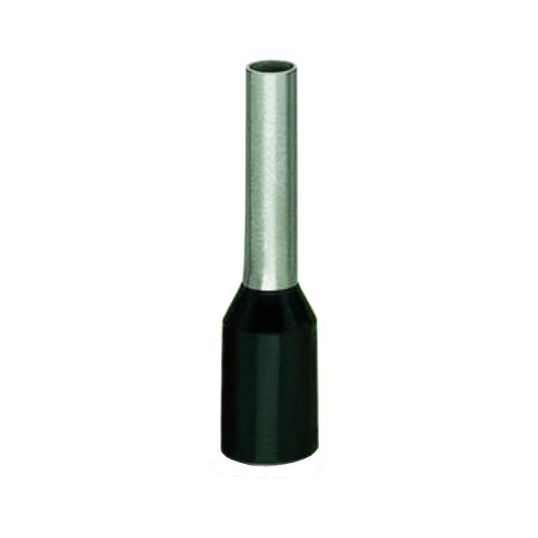

Wago Bootlace Ferrule Insulated 1.5 sq-mm 1.7x12mm Pin Black 18mm OAL
Loading...
Description
Insulated Bootlace Ferrule, 1.5 mm, 1 Conductors, 12 mm Pin Length, 1.7 mm Pin Diameter, 3.5 mm Collar Inside Diameter, 18 mm Overall Length, 14 mm Wire Strip Length, Electro Grade Copper Sleeve, Black Insulation, Copper Contact, Tin Electroplated, 1000 Pack
Key Specifications
| Barcode (EAN-13) |
4050821027393
|
|---|---|
| SKU |
WAG216-264
|
| Brand |
Wago
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1000 |
|---|---|
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | 216-264 |
| Collar Inside Diameter | 3.5 mm |
| Conductor Size | 1.5 mm |
| Contact Material | Copper |
| Finish | Tin Electroplated |
| Insulation Colour | Black |
| Number of Conductors | 1 |
| Overall Length | 18 mm |
| Pack Size | 1000 Pack |
| Pin Diameter | 1.7 mm |
| Pin Length | 12 mm |
| Sleeve Material | Electro Grade Copper |
| Wire Strip Length | 14 mm |
