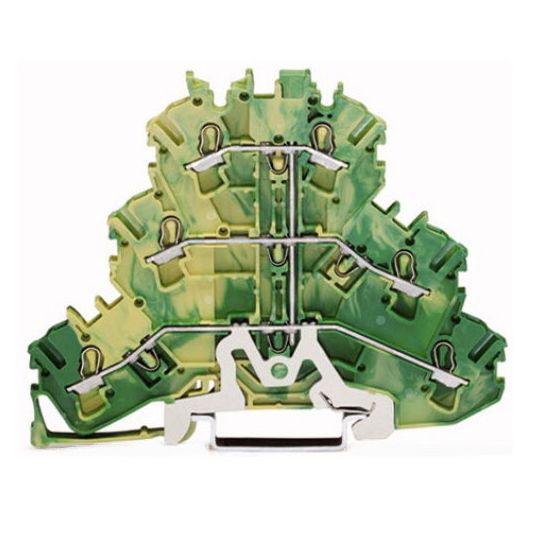

Wago Rail Terminal Block 6 Wire 3 Level 2.5mm Green/Yellow Polyamide 66

Description

Rail Terminal Block, 2.5mm Conductor, 6 Conductors, Wire Strip Length: 10 to 12 mm, Wiring Format: 6 Conductor Ground, Front Wire Entry, 6 Connection Points, 1 Potentials, 3 Levels, Marking Position: Centre/Side, Marking: PE, Fire load: 0.314 MJ, Actuation Type: Push-In, Open Tool Slot, DIN-35 Rail Mount, Conductor Material: Copper, Insulation Material: Polyamide 66, Green/Yellow, Height: 93.3 mm, 69.5 mm Width, 5.2 mm Depth

Key Specifications

Barcode (EAN-13)	4044918691277
SKU	WAG2002-3207
Brand	Wago
Range Name	TopJobs Series 2002
Product Type	Rail Terminal Blocks

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Without marker carrier
Standard Pack Size	50
UNSPSC Class	39121400
UOM	EA
Vendor Product	2002-3207
Actuation Type	Push-In/Open Tool Slot
Colour	Green/Yellow
Conductor Material	Copper
Conductor Size	2.5mm
Fire Load	0.314 MJ
Depth	5.2 mm
Height	93.3 mm
Insulation Material	Polyamide 66
Marking	PE
Marking Position	Centre/Side
Number of Levels	3
Number of Conductors	6
Number of Potentials	1
Mounting Method	DIN Rail
Number of Connection Points	6
Wire Entry Orientation	Front
Width	69.5 mm
Wire Strip Length	10-12 mm
Wiring Format	6 Conductor Ground
