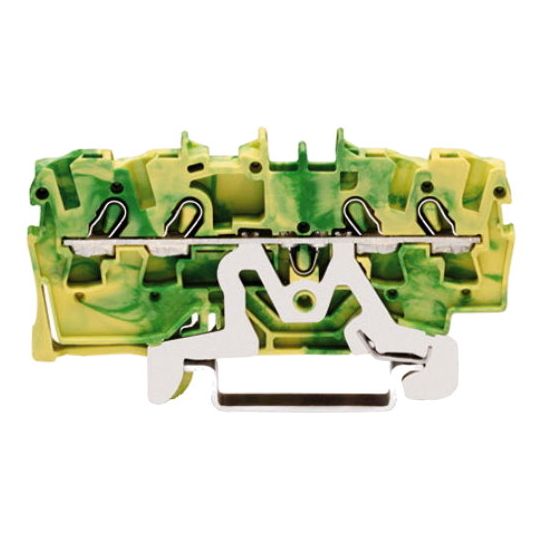

Wago Rail Terminal Block 4 Wire 1 Level 2.5mm Green/Yellow Polyamide 66

chevron-left
loader
Loading...

Description

chevron-down
Connecting conductors is quick and easy with this ground terminal block (item number 2002-1407). Our ground terminal blocks allow you to connect electrical conductors directly to the mounting rail thanks to an integrated contact foot. This connection ensures both electrical and mechanical stability between the conductors and the mounting adapter. Conductors can only be connected to this ground terminal block if their strip length is between 10 mm and 12 mm. Featuring conductor terminals along with Push-in CAGE CLAMP®, this product delivers reliable performance. Push-in CAGE CLAMP® connection technology is ideal for connecting all conductor types. It allows direct insertion of both solid and fine-stranded conductors with ferrules without the need for tools-all thanks to its pluggable design. This ground terminal block is suitable for conductor cross sections ranging from 0.25 sq-mm to 4 sq-mm . It comes with one level and four clamping points for connecting a single potential. The green-yellow housing is made of polyamide (PA66) for insulation. This through rail-mount terminal block is operated with an operating tool. Our TOPJOB® S rail-mount terminal blocks are perfect for many different industrial applications and modern building installations as they ensure secure electrical connections. You can work anywhere in the world and on any application with just a single rail-mount terminal block system. These through rail-mount terminal blocks are mounted using DIN-35 rails.. The front-entry wiring makes it possible to connect copper conductors. The two jumper slots enable potential distribution to other clamping points. This product is designed for specific Ex applications (please refer to the product datasheet).

Key Specifications

chevron-down
Barcode (EAN-13)
4045454429867
SKU
WAG2002-1407
Brand
Wago
Product Type
Rail Terminal Blocks

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Standard Pack Size 100
UNSPSC Class 39121400
UOM EA
Vendor Product 2002-1407
Actuation Type Push-In/Open Tool Slot
Colour Green/Yellow
Conductor Material Copper
Conductor Size 2.5mm
Fire Load 0.118 MJ
Flammability UL94 V0
Depth 5.2 mm
Height 69.9 mm
Insulation Material Polyamide 66
Marking (III / 3) Overvoltage category III / Pollution degree 3
Marking Position Centre/Side
Number of Jumper Slots 2
Number of Levels 1
Number of Conductors 4
Number of Potentials 1
Mounting Method DIN Rail
Number of Connection Points 4
Temperature -35 to 85 deg C
Terminal Type Push-In Cage Clamp
Wire Entry Orientation Front
Width 32.9 mm
Wire Strip Length 10-12 mm
Wiring Format 4 Conductor Ground
