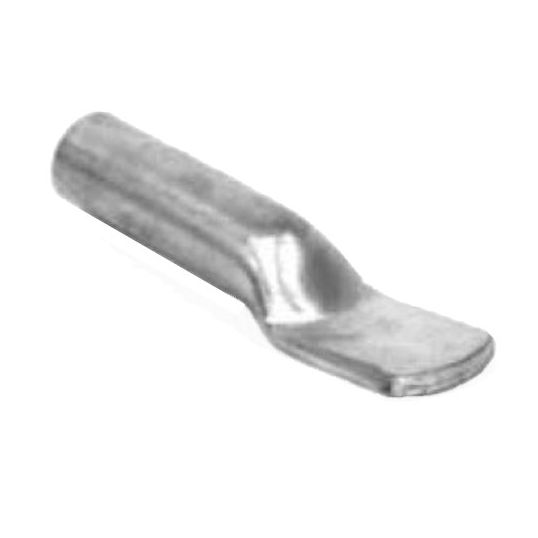

Utilux Crimp Lug Long Barrel Copper 240mm Blank Palm

Description

Crimp Lug Long Barrel Copper, 240 mm Conductor, Blank Palm For Custom Drilling, Long Barrel, 86mm Barrel, Solder Sealed Palm, Number of Strands: 61/2.25, 41.6 mm Lug Width, 54 mm Lug Length, Crimping Die: 38/40-231CU, Copper Body,Copper Conductor, Tin Electroplated Finish

Key Specifications

Barcode (EAN-13)	9313988005570
SKU	UTIH16035/1
Brand	Utilux
Range Name	Long Barrel Lugs
Product Type	Lugs Long Barrel

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Long barrel length for effective heat shrink sealing Designed for outdoor terminations Impervious to air at 140 kPa minimum
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	UTIH16035/1
Barrel Length	86 mm
Barrel Type	Long
Body Material	Copper
Conductive Material	Copper
Conductor Size	240 mm
Crimping Die	38/40-231CU
Finish	Tin Electroplated
Lug Length	54 mm
Lug Width	41.6 mm
Number of Strands	61/2.25
Palm Type	Solder Sealed
Stud Size	Blank Palm For Custom Drill inchg
