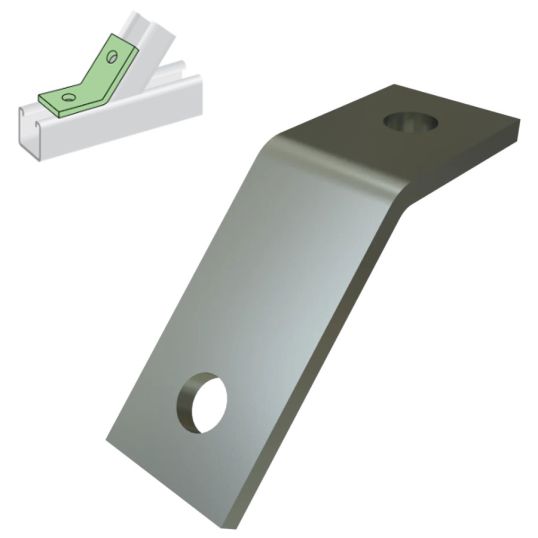

Unistrut Strut Joining Plate Angle Z Shape 45 Degree 2 Hole L76mm W60mm Steel Hot-Dip Galvanised

$Unistrut\Unistrut_P1546.jpg$

Description

Strut Joining Plate Angled Z Shape, 45 deg Angle, 2 Hole, 14 mm Hole Diameter, 21 mm From End 48 mm On Center Hole Spacing, For Use With 41 mm Width Channel/Strut, Steel, Hot Dip Galvanised, 76 mm Length, 60 mm Width, 2.5 Safety Factor

Key Specifications

Barcode (EAN-13)	932148051830
SKU	UNSP1546H
Brand	Unistrut
Product Type	Strut & Channel Joiners

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Unless otherwise noted, all fittings are punch press formed from plate or strip steel All product drawings illustrate only one application of each fitting In most cases many other applications are possible
Standard Pack Size	25
UNSPSC Class	30101800
UOM	EA
Vendor Product	4000961
Angle	45 Deg
Finish	Hot Dip Galvanised
For Use With	41 mm Width Channel/Strut
Hole Spacing	21 mm From End - 48 mm On Center
Hole Diameter	14 mm
Material	Steel
Number of Holes	2 Hole
Please Note	2.5 Safety Factor
Width	60 mm
