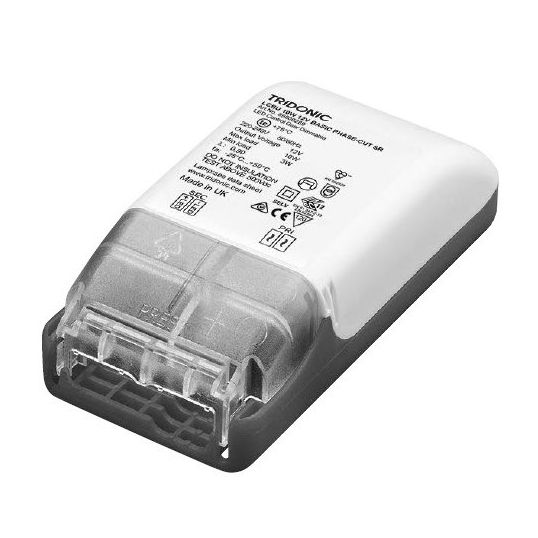

Tridonic Electronic Transformer 10W 220-240V Polycarbonate Casing IP20 White 102mm 10W 12V Basic Phase-Cut SR Luminaries

Description

Electronic Transformer, LED, 220-240 Volt, 10 Watt, 50/60 Hz, Ballast Factor: 0.9C, Dimmable. IP20, For Use With: LCBU 10 Watt 12 Volt Basic Phase-Cut SR Luminaries, Polycarbonate Casing, White, -25 to 50 deg C, 30 mm Height, 51 mm Width, 102 mm Length

Key Specifications

Barcode (EAN-13)	9006210493794
SKU	THN89800289
Brand	Tridonic
Product Type	Lighting Spares

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Dimmable via leading edge and trailing edge phase dimmers Dimming range type 5 to 100% (depending on dimmer) Screw terminal Connecting cable, wire cross-section 0.5 - 2.5 mm² Output power 10 Watt Compact dimensions Overload protection, short-circuit protection, no-load protection EN 55015, EN 61000-3-2, EN 61000-3-3, EN 61347-1, EN 61347-2-13, EN 61547, EN 62384 SELV, EAC,C Tick, CE, ENCE, ROHS 5 years warranty
Standard Pack Size	1
UNSPSC Class	39101900
UOM	EA
Vendor Product	89800289
Ballast Factor	0.9C
Colour	White
Dimmable	Dimmable
For Use With	LCBU 10 Watt 12 Volt Basic Phase-Cut SR Luminaries
Frequency	50/60 Hz
Height	30 mm
IP Rating	IP20
Lamp Type	LED
Material	Polycarbonate
Temperature	-25 to 50 deg C
Wattage	10 Watt
Voltage	220-240 Volt
Width	51 mm
