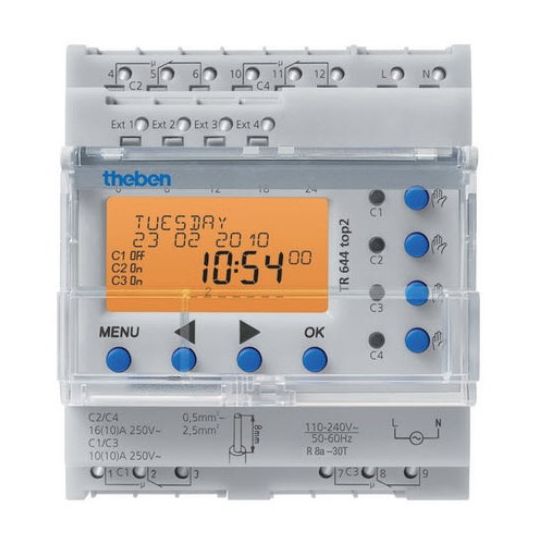

Theben Time Switch Digital Astronomical/Yearly 4 Channel 110-240VAC 16A 8yr Reserve 2CO DIN Rail Mount

Description

Time Switch Digital Astronomical/Yearly, 110-240 VAC, 16 Amp Switching Capacity, 50-60 Hz, 4 Modules, 4 Channels, DuoFix Spring Terminal, 8 Years Reserve Battery Backup, 2CO, 0.5-2.5 mm Terminal Capacity, IP20, DIN Rail,-30 to 45 deg C, 128.2mm Height x 76.2mm Width x 88.5mm Depth

Key Specifications

Barcode (EAN-13)	4003468644232
SKU	THBTR644TOP2
Brand	Theben
Product Type	Time Switches Digital

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	4 channels Digital time switch with yearly and astronomical time program Connectable sensors (external selector switch, sequence timer) Connectable switches (ON or OFF permanent switching) DuoFix spring terminals For 2 conductors each Wire or strand (with or without wire end sleeve) Wire diameter: 0.5-2.5 sq-mm Button for releasing plug-in connection Switching pre-selection
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	6440100
Battery Backup	8 Years Reserve
Connection Type	DuoFix Spring Terminal
Contact Type	2 Changeover
Dimensions	128.2 mm Height x 76.2 mm Width x 88.5 mm Depth
Frequency	50-60 Hz
IP Rating	IP20
Modules	4 Module
Number of Channels	4 Channel
Mounting Method	DIN Rail
Switching Capacity	16 Amp
Temperature	-30 to 45 deg C
Terminal Capacity	0.5-2.5 sq-mm
Voltage	110-240 Volt
