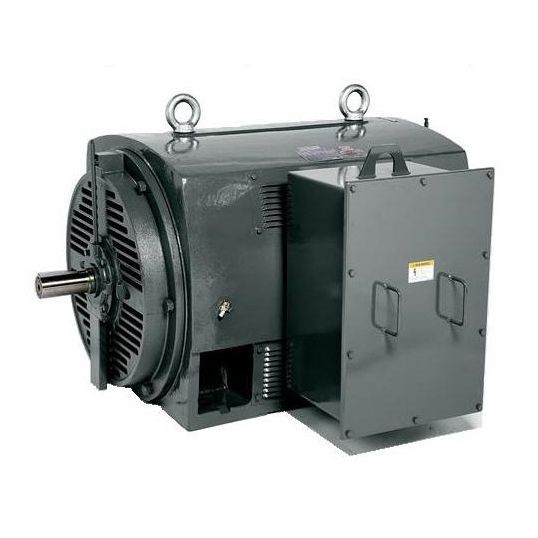

Teco Electric Motor Squirrel Cage Induction 4P 30kW 3Ph 415V C180LC Frame Horizontal Foot Mount

Description

Electric Motor Squirrel Cage Induction, 415 Volt AC, 57.4 Amp, 30 kW, 50 Hz, 3 Phase, 1465 rpm, 4 Pole, IP23, Frame: C180LC, Shaft Size: 55 mm, Clockwise Rotation, Duty Cycle: S1, Vacuum De-Gassed High Quality Open Bearing, Torque: 195.56 N/m, Horizontal Foot Mount, Insulation Class: Class F, <80 deg C, Cast Iron, Light Grey, 640 mm Length x 415 mm Height

Key Specifications

SKU	TEO055/0030C4
Brand	Teco
Range Name	Open Drip Proof
Product Type	Motors SCIM

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Highest quality insulation system utilizing Class H and F materials Low temperature rise for substantial thermal reserve Continuous rated, duty type S1 Cast iron/fabricated steel construction with side mounted terminal box
Standard Pack Size	1
UNSPSC Class	26101100
UOM	EA
Vendor Product	055/0030C4
Current	57.4 Amp
Colour	Light Grey
Bearing Type	Vacuum De-Gassed High Quality Open
Frame	Size C180LC
Frequency	50 Hz
Height	415 mm
Horsepower	30 kW
Insulation Class	Class F
IP Rating	IP23
Material	Cast Iron
Mounting Method	Horizontal Foot
Number Of Poles	4 Pole
Phase	3 Phase
Shaft Size	55 mm
Rotation	Clockwise
Speed	1465 rpm
Temperature	<80 deg C
Torque Rating	195.56 N/m
Voltage	415 Volt AC
