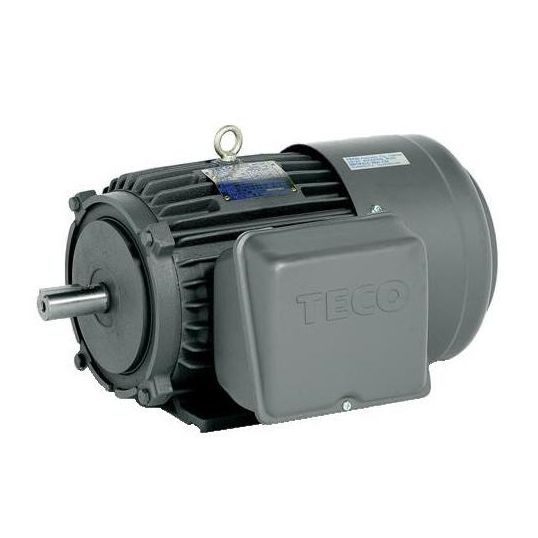

Teco Electric Motor Squirrel Cage Induction 4P 1.5kW 1Ph 240/480V D90L Frame Foot Mount

Description

Electric Motor Squirrel Cage Induction, 240/480 Volt AC, 10.4/5.2 Amp, 1.5 kW, 50 Hz, 1 Phase, 1450 rpm, 4 Pole, IP44, Frame: D90L, Shaft Size: 24 mm, Bi-Directional Rotation, Duty Cycle: S1, Single Row Deep Groove Bearing, Torque: 9.9 N/m, Foot Mount, Insulation Class: Class H/F, -10 to 40 deg C, Cast Iron, 392 mm Length x 190 mm Height

Key Specifications

SKU	TEO032/E01.5BE4
Brand	Teco
Range Name	BECY Cast Iron Metric
Product Type	Motors SCIM

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Totally enclosed fan cooled Highest quality insulation system utilizing Class H and F materials Low temperature rise for substantial thermal reserve Continuous rated, duty type S1 Steel terminal/capacitor box and fan cover Manual overload protection
Standard Pack Size	1
UNSPSC Class	26101100
UOM	EA
Vendor Product	032/E01.5BE4
Current	10.4/5.2 Amp
Bearing Type	Single Row Deep Groove
Frame	Size D90L
Frequency	50 Hz
Height	190 mm
Horsepower	1.5 kW
Insulation Class	Class H/F
IP Rating	IP44
Material	Cast Iron
Mounting Method	Foot
Number Of Poles	4 Pole
Phase	1 Phase
Shaft Size	24 mm
Rotation	Bi Directional
Speed	1450 rpm
Temperature	-10 to 40 deg C
Torque Rating	9.9 N/m
Voltage	240-480 Volt AC
