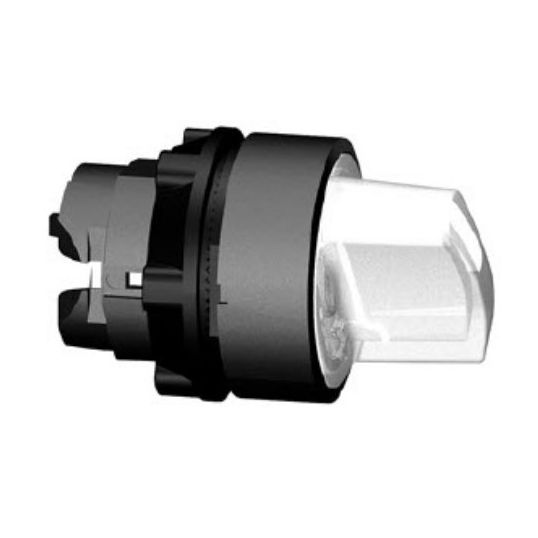

Schneider Rotary Selector Actuator Only 3 Position Plastic Body Illuminated Spring Return From Left to Center White 22mm

Description

Rotary Selector Actuator, Standard Actuator Head, Spring Return From Left to Centre, 1NO/1NC, 22mm Mounting Hole, 3 Position at 45 deg, Standard Handle Operator, Tightening Torque: 0.6 N/m, 1000000 Cycles, Screw Clamp Terminal, IP66, IP67, IP69, IP69K, NEMA 13/4X, Panel Mount, Plastic, Dark Grey Plastic, White, -40 to 70 deg C, 28.5 mm Diameter, 29 mm Height, 29 mm Width, 43 mm Depth

Key Specifications

Barcode (EAN-13)	3389110138122
SKU	TEEZB5-AK1713
Brand	Schneider
Range Name	Harmony Style 5
Product Type	Selector Actuators Rotary

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	ZB5AK1713
Colour	White
Contact Configuration	1 Normally Opened & 1 Normally Closed
Depth	43 mm
Head Type	Standard
Diameter	28.5 mm
Height	29 mm
IP Rating	IP66/67/69/69K
Mounting Diameter	22 mm
NEMA Rating	NEMA 13/4X
Mounting Method	Panel
Number of Positions	3 at 45 deg
Operating Cycles	1000000 Cycles
Operator Action	Spring Return Left
Operator Type	Standard Handle
Temperature	-40 to 70 deg C
Terminal Connection	Screw Clamp
Tightening Torque	0.6 N/m
Width	29 mm
