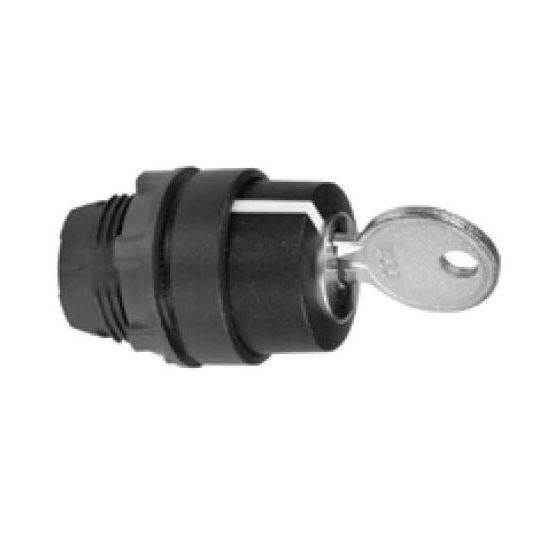

Schneider Keyed Selector Actuator Only 3 Position Plastic Body Spring Return Right to centre Black 22.5mm

Description

Keyed Selector Actuator Only 3 Position, key Withdrawal Position Centre, Spring Return Right to centre, IP66, IP67, IP69, IP69K, 1000000 Cycles, Tightening Torque: 0.6 N/m, Screw Terminal, Mounting Diameter: 22 mm, Panel Mount, Housing: Plastic, Bezel: Dark Grey Plastic, Black, Black Key Switch, Standard Head, -40 to 70 deg C, 28.5 mm Diameter

Key Specifications

Barcode (EAN-13)	3389110905861
SKU	TEEZB5-AG8
Brand	Schneider
Range Name	Harmony Style 5
Product Type	Selector Actuators Keyed

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	ZB5AG8
Actuator Head	Standard
Colour	Black
Diameter	28.5 mm
Housing Material	Plastic
IP Rating	IP66/67/69/69K
Key Function	Key Removal Centre
Mounting Diameter	22 mm
Operating Cycles	1000000 Cycles
Mounting Method	Panel
Operator Action	Spring Return Right to Centre
Operator Profile	Black Key Switch
Temperature	-40 to 70 deg C
Terminal Connection	Screw
Tightening Torque	0.6 N/m
