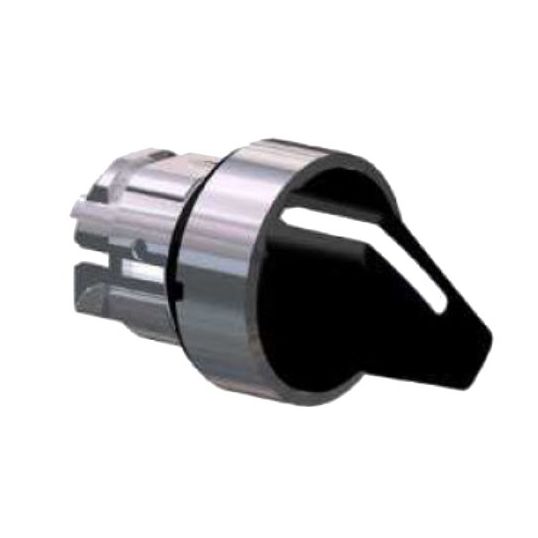

Schneider Rotary Selector Actuator Only 3 Position Metal Body Non Illuminated Spring Return to Center Black 22mm

Description

Rotary Selector Actuator, 1 Normally Opened/1 Normally Closed Configuration, Standard Handle Operator, Spring Return Operator Action, 1000000 Cycles, 3 at 45 deg Position, Standard Head, Screw Clamp/Plug-in/Printed Circuit Board/Faston Terminal, 0.6 Nm Tightening Torque, Panel Mounting, 22.5 mm Mounting Diameter, IP67/69/69K, NEMA 13/4X, Chromium Plated Metal Bezel, Black, -40 to 70 deg C, 28.5 mm Diameter, 29 mm Height, 29 mm Width, 44 mm Depth

Key Specifications

Barcode (EAN-13)	3389110888973
SKU	TEEZB4-BD5
Brand	Schneider
Range Name	Harmony Style 4
Product Type	Selector Actuators Rotary

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	ZB4BD5
Colour	Black
Bezel Material	Chromium Plated Metal
Contact Configuration	1 Normally Opened/1 Normally Closed
Depth	44 mm
Head Type	Standard
Diameter	28.5 mm
Height	29 mm
IP Rating	IP67/69/69K
Mounting Diameter	22.5 mm
NEMA Rating	NEMA 13/4X
Mounting Method	Panel
Number of Positions	3 at 45 deg
Operating Cycles	1000000 Cycles
Operator Action	Spring Return
Operator Type	Standard Handle
Temperature	-40 to 70 deg C
Terminal Connection	Screw Clamp/Plug-in/Printed Circuit Board/Faston
Tightening Torque	0.6 Nm
Width	29 mm
