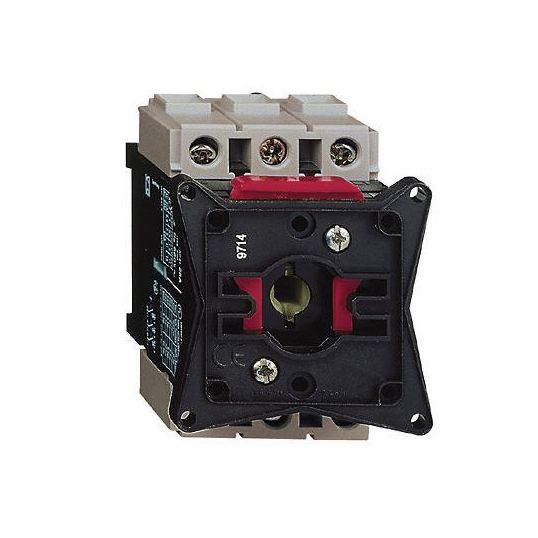

Schneider Load-Break Switch Front Operated 3P 5.5 kW AC23 Symmetrical Rail Mount IP20
Loading...
Description
Load-Break Switch Front Operated, 690 Volt AC, 20 Amp, AC23 Rating: 11 Amp @ 415 Volt AC, 5.5 kW @ 415 Volt AC, 3 Pole, Cable Size: 6 mm Flexible, 10 mm Solid, Screw Clamp, IP20, Symmetrical Rail Mount, -20 to 50 deg C, 74 mm Height, 55 mm Width, 60 mm Depth, Front Operated
Key Specifications
| Barcode (EAN-13) |
3389110448894
|
|---|---|
| SKU |
TEEV01
|
| Brand |
Schneider
|
| Range Name |
Vario
|
| Product Type |
Load-Break Switches
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39122200 |
| UOM | EA |
| Vendor Product | V01 |
| AC23 Rating | 11 Amp 5.5 kW @ 415 Volt AC |
| Cable Size | 6 sq-mm Flexible/10 sq-mm Solid |
| Connection Type | Screw Clamp |
| Current | 20 Amp |
| Depth | 60 mm |
| Height | 74 mm |
| IP Rating | IP20 |
| Number Of Poles | 3 Pole |
| Please Note | Front Operated |
| Temperature | -20 to 50 deg C |
| Voltage | 690 Volt AC |
| Width | 55 mm |
