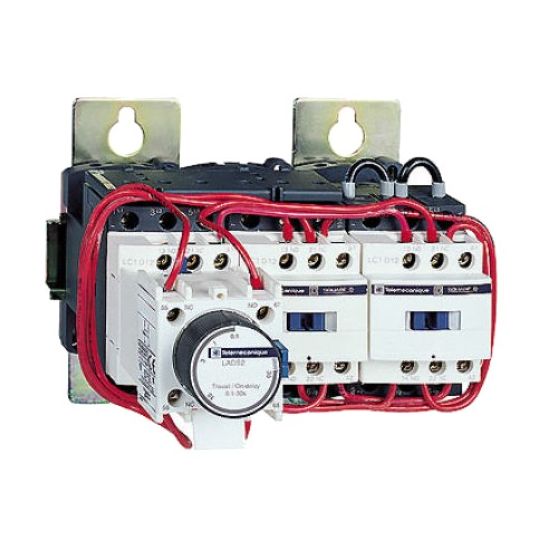

Motor Starter Star Delta 15/22kW 110V Open Unenclosed IP20

Schneider Motor Starter Star Delta 15/22kW 110V Open Unenclosed IP20

PRODUCT CODE:
TEELC3-D18AF7

Std Pack Size
1
OUR P/N:
TEELC3-D18AF7

You need to be registered and logged in to view product details and pricing

Motor Starter Star Delta, 690 Volt AC, 18 Amp, 50/60 Hz, 15/22 kW, 11 kW @ 220/230 Volt AC 50/60 Hz, 22 kW @ 415/440 Volt AC 50/60 Hz, 110 Volt AC, 3 x 3P Poles, 30 sec, Screw,3 x 1NO + 1NC, Open Unenclosed, IP20, 1.65 M Cycles Electrical, -40 to 70 deg C, 124 mm Height x 144 mm Width x 143 mm Depth, Overload Purchased Separately

Additional Information

Additional Information
Brand Schneider
Range Name TeSys Model D
Standard Pack Size 1
UNSPSC Class 39121500
UOM EA
Vendor Product LC3D18AF7
Auxiliary Contact Rating 3 x 1 Normally Opened & 1 Normally Closed
Coil Voltage 110 Volt AC
Connection Type Screw
Enclosure Type Open Unenclosed
Frequency 50/60 Hz
Depth 143 mm
Height 124 mm
IP Rating IP20
Motor Power 11 kW @ 220-230 Volt AC/22 kW @ 415-440 Volt AC
Operating Cycles 1.65 M Cycles Electrical
Please Note Overload Purchased Separately
Product Type Motor Starters Star Delta
Operating Temperature -40 to 70 deg C
Voltage 690 Volt AC
Timing 30 sec
Wattage 15/22 kW
Width 144 mm
Current 18 Amp
