Std Pack Size
1
OUR P/N:
TEELC1-D50N7

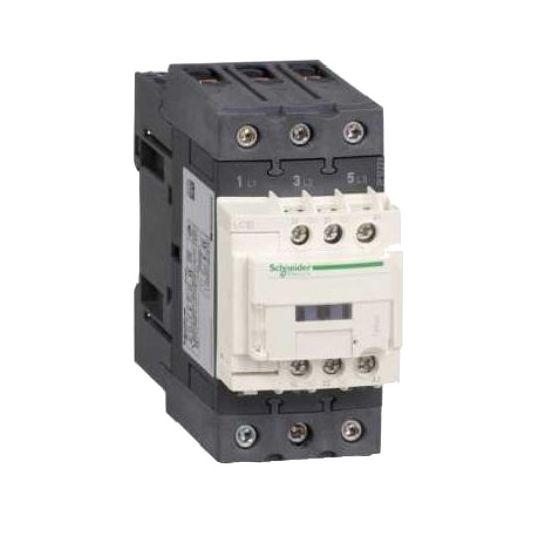

Contactor General Purpose AC Operated, 415 Volt AC, AC3 Rating (kW): 33, AC3 Rating (Amps): 50 at 440 Volt, AC1 Rating (Amps): 80 at 440 Volt, 690 Volt AC, 1NO-1NC Auxiliary, 3 Pole, Operating Time: 12-26 ms Closing, 4-19 ms Opening, Screw Clamp, DIN Rail/Plate Mount, IP2X, -60 to 80 deg C, 127 mm Height, 75 mm Width, 119 mm Depth
Additional Information
| Brand | Schneider |
|---|---|
| Range Name | TeSys Model D |
| Standard Pack Size | 1 |
| UNSPSC Class | 39121500 |
| UOM | EA |
| Vendor Product | LC1D50N7 |
| AC1 Rating (Amps) | 80 Amp AC1 |
| AC3 Rating (Amps) | 50 Amp AC3 |
| AC3 Rating (kW) | 33 kW |
| Contact Configuration | 1 Normally Opened & 1 Normally Closed Aux |
| Contact Voltage | 690 Volt AC |
| Height | 127 mm |
| IP Rating | IP2X |
| Depth | 119 mm |
| Number Of Poles | 3 Pole |
| Mounting Method | DIN Rail/Plate |
| Operating Coil Voltage | 415 Volt AC |
| Operating Time | 12-26 ms Closing/4-19 ms Opening |
| Temperature | -60 to 80 deg C |
| Product Type | Contactors General |
| Width | 75 mm |
| Terminal Connection | Screw Clamp |
