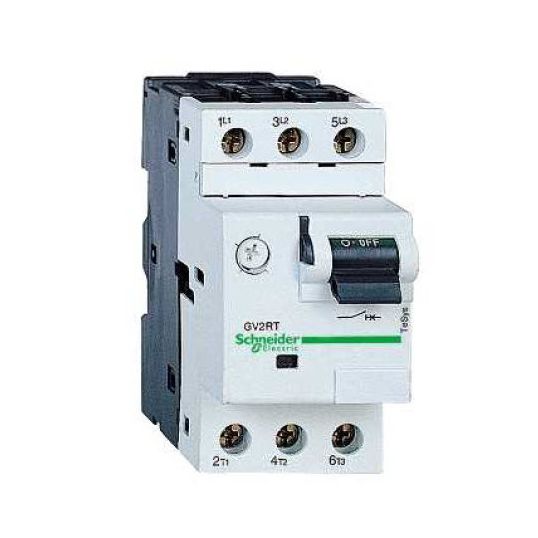

Schneider Circuit Breaker Motor Rated 3Pole 1A 0.37kW 690VAC DIN Rail Clipped Mount

Description

Miniature Circuit Breaker Motor Rated, 690 Volt AC, 1 Amp, 50/60 Hz, 100 kA Interrupt Capacity, 22 Magnetic Rating, 0.37 kW Load Rating, 3 Poles, Toggle Operator, Screw Clamp Terminal, 100000 Cycles, IP20 Conforming to IEC 60529, 35mm Symmetrical DIN Rail Clipped,-20 to 60 deg C, 89mm Height x 45mm Width x 78.5mm Depth

Key Specifications

Barcode (EAN-13)	3389110520613
SKU	TEEGV2RT05
Brand	Schneider
Range Name	GV2RT
Product Type	Mini Circuit Breakers

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	GV2RT05
Current	1 Amp
Frequency	50/60 Hz
Depth	78.5 mm
Height	89 mm
Interrupt Capacity	100 kA
Load Rating	0.37 kW
IP Rating	IP20
Magnetic Rating	22
Temperature	-20 to 60 deg C
Mounting Method	DIN Rail
Operator Type	Operators
Operating Cycles	100000 Cycles
Terminal Type	Screw Clamp
Voltage	690 Volt
Number Of Poles	3 Pole
Width	45 mm
