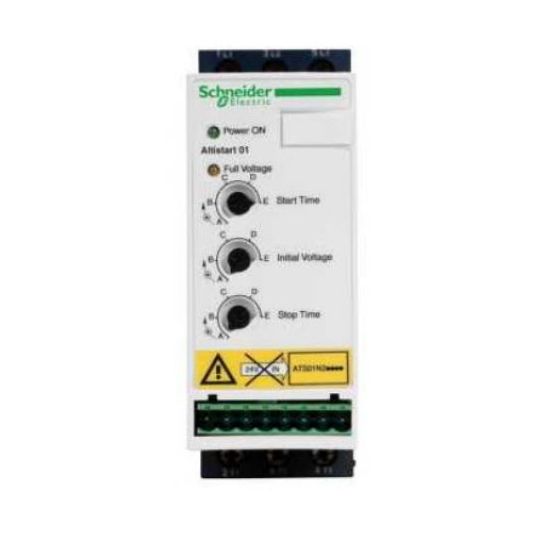

Schneider Motor Starter Soft Start Soft Stop 3 Phase 4.0kW 415V

Description

Motor Starter Soft Start Soft Stop 3 Phase, 380-415 Volt, 45 Amp, 50/60 Hz, 4.0 kW, Timing: 1, 100, 5, 20, 10, 10 sec, 3 Phase, IP20, Start With Voltage Ramp, -10 to 40 deg C/40 to 60 deg C, 124 mm Height, 45 mm Width, 131 mm Depth

Key Specifications

Barcode (EAN-13)	3389110667233
SKU	TEEATS01N209QN
Brand	Schneider
Range Name	Altistart 01
Product Type	Motor Starters Soft Start

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	ATS01N209QN
Height	124mm
Depth	131mm
Frequency	50/60 Hz
IP Rating	IP20
Phase	3 Phase
Supply Voltage	380-415 Volt
Starting Modes	Start With Voltage Ramp
Wattage	4.0 kW
Temperature	-10 to 40 deg C/40 to 60 deg C
Width	45mm
Current	45 Amp
