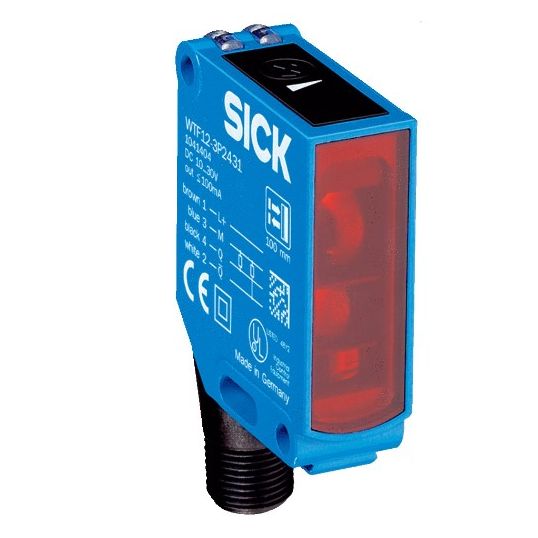

Sick Photoelectric Switch Proximity Sensing Foreground Suppression 1 M12 Male 4 Pin Metal 10/30VDC PNP/Light-On/Dark-On
Loading...
Description
Photoelectric Switch Proximity Sensing, Rectangular, Foreground Suppression, Sensing Range: 30-175 mm, Response Time: <=330 ms, PNP/Light-On/Dark-On, 10/30 Volt DC, LED, 1 M12 Male, 4 Pin, IP66, IP67, IP69K, Metal, -40 to 60 deg C, 48.5 mm Height, 15.6 mm Width, 42 mm Depth
Key Specifications
| SKU |
SICWTF12-3P2431
|
|---|---|
| Brand |
Sick
|
| Product Type |
Proximity Sensors
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39122200 |
| UOM | EA |
| Vendor Product | 1041404 |
| Depth | 42 mm |
| Height | 48.5 mm |
| IP Rating | IP66/67/69 |
| Output Function | PNP/Light-On/Dark-On |
| Material | Metal |
| Light Source | LED |
| Operating Voltage | 10-30 Volt DC |
| Response Time | <=330 ms |
| Sensing Method | Foreground Suppression |
| Sensing Range | 30-175 mm |
| Temperature | -40 to 60 deg C |
| Shape | Rectangular |
| Terminal Connection | 1 M12 Male/4 Pin |
| Width | 15.6 mm |
