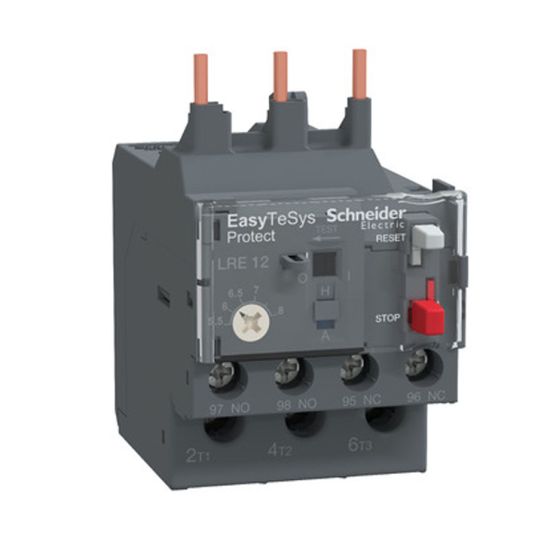

Schneider TVS Thermal O/L 5.5-8A 690V 1NO-1NC Class 10A Red Pushbutton Stop/Blue Pushbutton Reset

$Schneider\Schneider_LRE12.JPG$

Description

The LRE relay is a differential thermal overload relays for use with fuses or magnetic circuit-breakers GV2 L and GV3 L. Its thermal setting range is 5.5-8 Amp 50/60 Hz and the tripping class is 10 Amp conforming to IEC 60947-4-1. It can be direct mounted on EasyPact TVS contactors with screw clamp terminals connection. It protects unbalanced loads and motors with 3 kW at 400 Volt AC. It provides manual or automatic reset, trip auxiliary contact and flag indicator. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and green premium compliant (RoHs/Reach).

Key Specifications

Barcode (EAN-13)	3606480329777
SKU	SHNLRE12
Brand	Schneider

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39122300
UOM	EA
Vendor Product	LRE12
Control Type	Red Pushbutton Stop/Blue Pushbutton Reset
Contact Configuration	1 Normally Opened & 1 Normally Closed
Conventional Thermal Current	5 Amp
Depth	70 mm
For Use With	GV2 L/GV3 L Fuses or Magnetic Circuit Breakers
Frequency	50/60 Hz
Height	44.5 mm
IP Rating	IP20
Mounting Method	Contactor/Plate/Din Rail
Operational Voltage	690 Volt
Operational Current	8 Amp
Setting Range From (Amp)	5.5
Setting Range To (Amp)	8.0
Temperature	-20 to 70 deg C
Terminal Connection	Screw Clamp
Tightening Torque	1.7 N/m
Trip Characteristic	Class 10A
Width	45 mm
