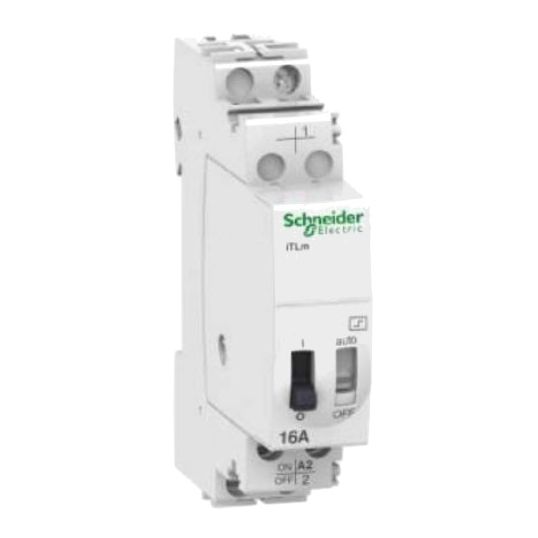

Schneider Impulse Relay w/Latched Control 1NO 16A 240V DIN Rail Mount

$Schneider\Schneider_A9C34811.jpg$

Description

Impulse Relay With Latched Control, 250 Volt AC, 240 Volt AC, 16 Amp, 1NO, Coil Deconnection, Remote and Manual, 200000 Cycles, AC-22: 100000 Cycles, Tightening Torque: 1 N/m, Tunnel Terminal, IP20, IP40, DIN Rail Mount, -20 to 50 deg C, 84 mm Height, 18 mm Width, 60 mm Depth

Key Specifications

Barcode (EAN-13)	3606480092107
SKU	SHNA9C34811
Brand	Schneider
Range Name	Acti 9 iTLm
Product Type	Impulse Relays

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39122300
UOM	EA
Vendor Product	A9C34811
IP Rating	IP20/40
Voltage	250 Volt AC
Contact Configuration	1 Normally Opened
Control Type	Coil Deconnection/Remote and Manual
Height	84 mm
Width	18 mm
Current	16 Amp
Depth	60 mm
Temperature	-20 to 50 deg C
Terminal Type	Tunnel
Mounting Method	DIN Rail
Operating Cycles	AC-21: 200000 Cycles, AC-22: 100000 Cycles
Tightening Torque	1 N/m
Operating Coil Voltage	240 Volt AC
