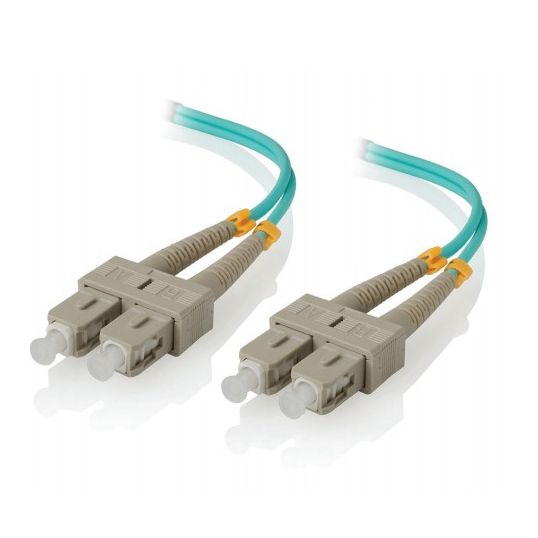

Serveredge Fibre Optic Patch Lead Duplex Multi-Mode OM3 50um/125um SC-SC LSZH Aqua 3m

Description

Fibre Optic Patch Lead, Duplex Multi-Mode, Connector A: SC, Connector B: SC, 2 Fibre Count, Multi-Mode, Fibre Type: 50 um Fibre 125 um Buffer OM3, 3 mtr Cord Length, 3mm OD, Attenuation: <2.3 dB/km at 850 nm, <0.6 dB/km at 1300 nm, Insertion Loss: <0.2 dB/300 m at 850/1300 nm, Corning Inficore 300 Glass Fibre Material, LSZH Sheath, Ceramic Contact, Aqua Sheath

Key Specifications

Barcode (EAN-13)	9350784004529
SKU	SEVSCSC-03-OM3
Brand	Serveredge
Product Type	Patch Leads Fibre

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Multi Mode OM3 fibre optic cable Low Smoke Zero Halogen Jacket for minimal toxic emissions in case of fire 100% optically tested and provided with test reports
Standard Pack Size	1
UNSPSC Class	43223300
UOM	EA
Vendor Product	SCSC-03-OM3
Attenuation	<2.3 dB/km at 850 nm/<0.6 dB/km at 1300 nm
Connector A	SC
Connector B	SC
Contact Material	Ceramic
Cord Length	3 mtr
Fibre Count	2
Fibre Material	Corning Inficore 300 Glass
Fibre Mode	Multi-Mode
Fibre Type	50 um Fibre 125 um Buffer OM3
Insertion Loss	<0.2 dB/300 m at 850/1300 nm
Outside Diameter	3mm
Sheath Material	LSZH
Sheath Colour	Aqua
