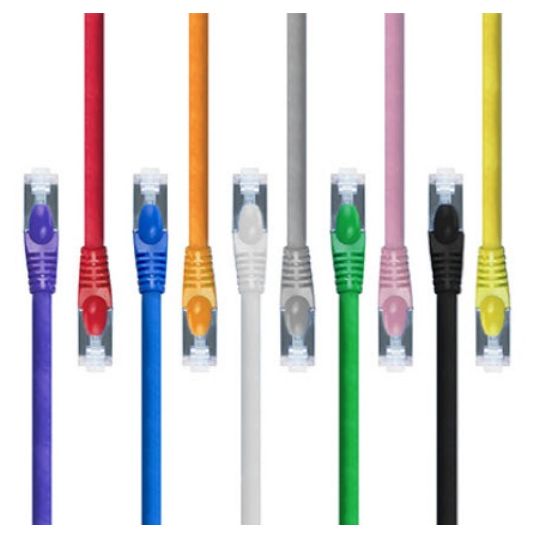

Serveredge STP Patch Cord 10GbE Cat6A RJ45-RJ45 26AWG LSZH Green 1.5m

Description

STP Patch Cord 10GbE Cat6A, Connector A: RJ45 Plug, Connector B: RJ45 Plug, Stranding: 7/0.16mm, 26 AWG Conductor, Stranded Conductor, 1.5 mtr Cord Length, 30 V, 750 MHz, Wiring Scheme: T568A, Bare Copper Conductor, Foam PE Insulation, LSZH Sheath, Contact Material: Gold Plated, Green Sheath, 75 deg C

Key Specifications

Barcode (EAN-13)	9350784005755
SKU	SEVC6A-1.5-GREEN-SH
Brand	Serveredge
Product Type	Cat6A Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Performance rated for 750 MHz bandwidth Suit for up to 10G LANS, include 10GBASE-T Ethernet, 1000BASE-TX Fast Ethernet and Lower Each twisted pair in the cable is individually wrapped in aluminium foil Mylar (100% Coverage) Overall Copper Braided Shielded Comes with LSZH (Low Smoke Zero Halogen) Jacket Category 6A SFTP cable wired straight through. 26 AWG, gold plated 8x8 (RJ45) plugs Snag-free strain relief molded boot provides secure and accurate connection Suppresses ANEXT (Alien Near End Cross Talk) and delivers superior 10GbE performance up to 100mt A-Tick Compliant as per ACMA requirement ETL verified to TIA/EIA-568C.2.1 Category 6a
Standard Pack Size	1
UNSPSC Class	43223300
UOM	EA
Vendor Product	C6A-1.5-GREEN-SH
Conductor Size	26 AWG
Cord Length	1.5 mtr
Sheath Colour	Green
Connector A	RJ45
Connector B	RJ45
Temperature	75 deg C
Voltage	30 Volt
Insulation Material	Foam PE
Sheath Material	LSZH
Stranding	7/0.16mm
Conductor Material	Bare Copper
Contact Material	Gold Plated
Frequency Bandwidth	750 MHz
Wiring Scheme	T568A
