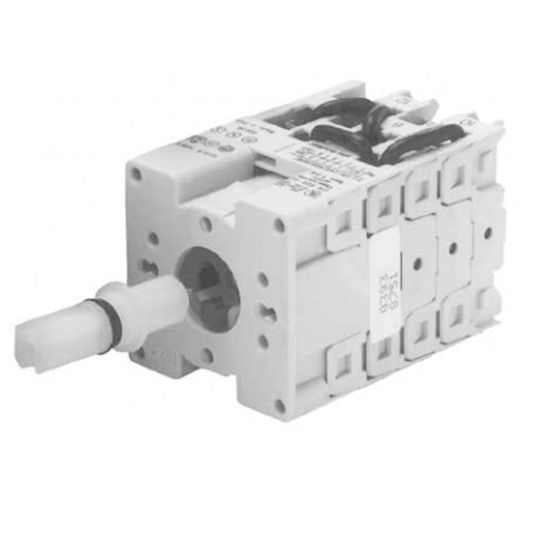

Sprecher+Schuh Cam Switch Voltmeter 16A AC21 Panel Mount

Description

Cam Switch Voltmeter, AC21 Rating: 16 Amp at 690 Volt AC, 690 Volt AC, 50/60 Hz, Stayput Action, 45 deg, Voltmeter Switch, Legend: L3-L1 L2-L3 L1-L2 O L1-N L2-N L3-N, Rotary Actuator, Screw Terminal, Mechanical Durability: 1200 Cycles/hr, Panel Mount, IP20, IP65, -25 to 60 deg C, 42 mm Height, 42 mm Width, 64 mm Depth, Please Note: 3 Wafers

Key Specifications

Barcode (EAN-13)	9321807151315
SKU	S&SLE2-16-8251
Brand	Sprecher+Schuh
Range Name	L2
Product Type	Cam Switches Voltmeter

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Switch bodies with Touch-Proof terminals (IP 20) Long operational life and high reliability Positive switching action with clearly defined switching point All switch bodies are manufactured from self-extinguishing materials (corresponding to class UL 94 V0) Captive terminal screws already open for fast installation Robust screwdriver guide for easy wiring using manual or power screwdriver Clear terminal markings prevent wiring mistakes Easy access to switch terminals (angled screws) Switch handle assemblies available with either screw fixing or central nut mounting
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	LE2168251
AC21 Rating	16 Amp AC21 @ 690 Volt
Actuator	Rotary
Connection Type	Screw
Depth	64 mm
Frequency	50/60 Hz
IP Rating	IP20/65
Height	42 mm
Legend	L3-L1 L2-L3 L1-L2 O L1-N L2-N L3-N
Mechanical Durability	1200 Cycles/hr
Mounting Method	Panel
Operation Type	Stayput
Please Note	3 Wafers
Switching Angle	45 deg
Switching Function	Voltmeter Switch
Temperature	-25 to 60 deg C
Voltage	690 Volt
Width	42 mm
