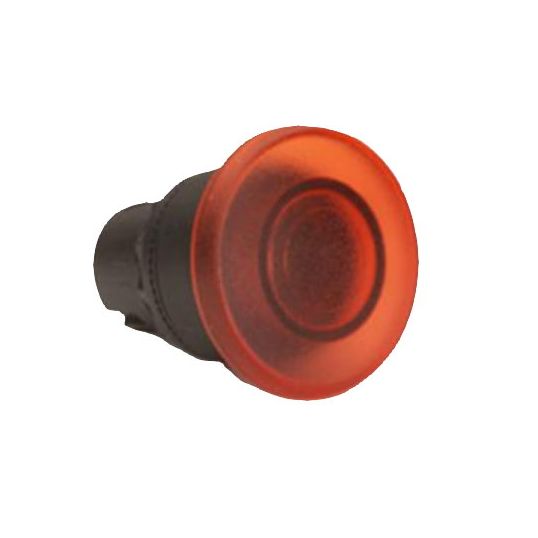

Sprecher+Schuh Pushbutton Actuator Only 40mm Mushroom Head Plastic Body k Illuminated Momentary 22.5mm Panel

Description

Pushbutton Actuator Only 40mm Mushroom Head Plastic Body, Size: 22.5 mm, Illuminated, Momentary Action, Mushroom Head, Tightening Torque: 1.7 N/m, IP65, IP66, IP69K, Mounting Diameter: 22.5 mm, Panel Mount, Thermoplastic Housing, Glass-Filled Nylon/PA6/PA66 Bezel, Yellow, -25 to 70 deg C, 40 mm Diameter

Key Specifications

SKU	S&SD7P-LMM45
Brand	Sprecher+Schuh
Range Name	D7
Product Type	P/B Actuators Mushroom

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	D7 pilot devices offer maximum flexibility and a wide choice for all 22.5mm operator applications with all type (e-stops, selector switches, pushbuttons, pilot lights and more), colour and contact configurations Aesthetically appealing and modularly designed to make assembly and interchangeability easy Operators exhibit low profile and stylish appearance while maintaining the rugged performance necessary for demanding environments D7P is a plastic operator with a captive black plastic front bezel. Constructed of high grade thermoplastics, the D7P operators provide strong chemical resistance making them suitable for use in different environments D7M has a die-cast zinc housing and mounting ring for rugged durability, finished with corrosion resistant chrome plating, the D7M also features a captive shiny metal bezel for a polished appearance
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	D7PLMM45
Colour	Yellow
Diameter	40 mm
Head Type	Mushroom
IP Rating	IP65/66/69
Mounting Diameter	22.5 mm
Mounting Method	Panel
Operator Action	Illuminated Momentary Action
Temperature	-25 to 70 deg C
Size	22.5 mm
Tightening Torque	1.7 N/m
