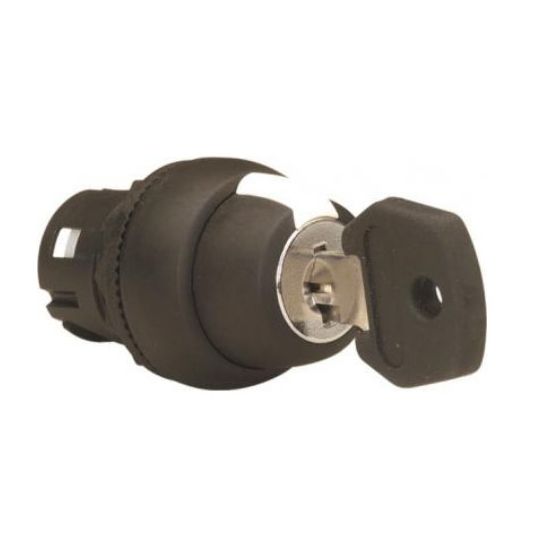

Sprecher+Schuh Keyed Selector Actuator Only 3 Position Plastic Body Stayput 22.5mm

Description

Keyed Selector Actuator Only 3 Position, Key Removal All Positions, Stayput, 11ms Response, IP65, IP66, 2 Standard Keys, 30000 Cycles, Tightening Torque: 1.7 N/m, Mounting Diameter: 22.5 mm, Panel Mount, Housing: Plastic, Bezel: Glass-Filled Nylon/PA6/PA66 (Polyamide 6), Low Profile, -25 to 70 deg C, 29.6 mm Height x 21.2 mm Width

Key Specifications

Barcode (EAN-13)	9321807232892
SKU	S&SD7P-KM33
Brand	Sprecher+Schuh
Range Name	D7
Product Type	Selector Actuators Keyed

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	D7 pilot devices offer maximum flexibility and a wide choice for all 22.5mm operator applications with all type (e-stops, selector switches, pushbuttons, pilot lights and more), colour and contact configurations Aesthetically appealing and modularly designed to make assembly and interchangeability easy Operators exhibit low profile and stylish appearance while maintaining the rugged performance necessary for demanding environments D7P is a plastic operator with a captive black plastic front bezel. Constructed of high grade thermoplastics, the D7P operators provide strong chemical resistance making them suitable for use in different environments D7M has a die-cast zinc housing and mounting ring for rugged durability, finished with corrosion resistant chrome plating, the D7M also features a captive shiny metal bezel for a polished appearance
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	D7PKM33
Actuator Type	2 Standard Keys
Height	29.6 mm
Housing Material	Plastic
IP Rating	IP65/66
Key Function	Key Removal All Positions
Mounting Diameter	22.5 mm
Operating Cycles	30000 Cycles
Mounting Method	Panel
Operator Action	Stayput
Operator Profile	Low Profile
Response Time	11 ms
Temperature	-25 to 70 deg C
Width	21.2 mm
Tightening Torque	1.7 N/m
