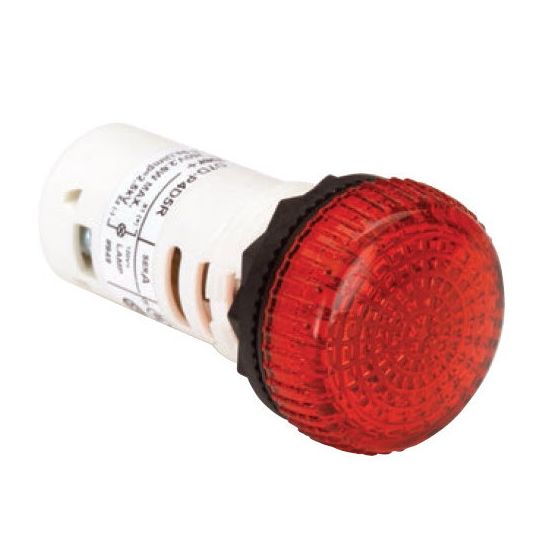

Sprecher+Schuh Pilot Indicator Complete Plastic Body 48VAC/DC Incandescent BA9s Lamp Red

chevron-left
loader
Loading...

Description

chevron-down
Pilot Indicator Complete Plastic Body, 48 Volt AC/DC, Incandescent, BA9s Base, Red, Screw Terminal, Panel Mount, IP65, IP66, NEMA 3/3R/4/4X/12/13, Housing: Plastic, Bezel: Glass-Filled PBT/Valox, Lens: PMMA/Acrylic/Perspex/Plexiglas, 30.4 mm Diameter, -25 to 60 deg C

Key Specifications

chevron-down
SKU
S&SD7D-P4D4
Brand
Sprecher+Schuh
Range Name
D7 Monolithic
Product Type
Pilot Indicators

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • D7 pilot devices offer maximum flexibility and a wide choice for all 22.5mm operator applications with all type (e-stops, selector switches, pushbuttons, pilot lights and more), colour and contact configurations
  • Aesthetically appealing and modularly designed to make assembly and interchangeability easy
  • Operators exhibit low profile and stylish appearance while maintaining the rugged performance necessary for demanding environments
  • D7P is a plastic operator with a captive black plastic front bezel
  • Constructed of high grade thermoplastics, the D7P operators provide strong chemical resistance making them suitable for use in different environments
  • D7M has a die-cast zinc housing and mounting ring for rugged durability
  • Finished with corrosion resistant chrome plating, the D7M also features a captive shiny metal bezel for a polished appearance
  • Polyester fixing collar material
Standard Pack Size 1
UNSPSC Class 39121500
UOM EA
Vendor Product D7DP4D4
Diameter 30.4 mm
Housing Material Plastic
IP Rating IP65/66
Lamp Base BA9s
Lamp Colour Red
Lamp Type Incandescent
NEMA Rating NEMA 3/3R/4/4X/12/13
Mounting Method Panel
Terminal Connection Screw
Temperature -25 to 60 deg C
Voltage 48 Volt AC/DC
