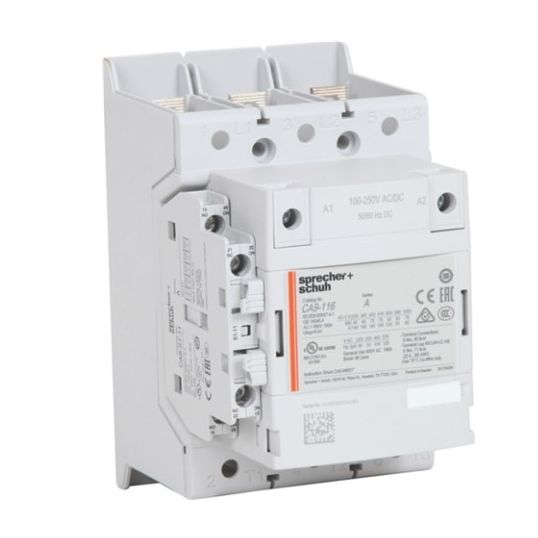

Sprecher+Schuh Non-Reversing Contactor 3 Pole 75kW 146A AC3 225A AC1 250-500VAC/DC 1NO-1NC Auxiliary Electronic

Description

Non-Reversing Contactor, 250-500 Volt AC/DC, AC3 Rating (kW): 75 at 1 kV/415 Volt, 90 at 690 Volt, AC3 Rating (Amps): 60 at 1000 Volt, 146 at 415 Volt, 93 at 690 Volt, AC1 Rating (Amps): 225 at 1 kV/690 Volt, 1NO-1NC Auxiliary, 3 Pole, Operating Time: 20-55 ms Closing Delay, 40-70 ms Opening Delay, 150 mm Height, 90 mm Width, Electronic Coil

Key Specifications

SKU	S&SCA9146EI11480W
Brand	Sprecher+Schuh
Range Name	CA9
Product Type	Contactors Non-Reversing

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Simplifies selection with electronic wide range AC/DC coils Saves energy with low power consumption For ease of change over, adaptor plates available in KIT form for CA6 to CA9 migration Several contactor families provide a wide variety of contactor sizes, offering economy and selection Compact dimensions saves panel space
Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	CA9146EI11480W
AC1 Rating (Amps)	225 Amp AC1
AC3 Rating (Amps)	60/146/93 Amp AC3
AC3 Rating (kW)	75/90 kW
Contact Configuration	1 Normally Opened & 1 Normally Closed Aux
Height	150 mm
Number Of Poles	3 Pole
Operating Coil Voltage	250-500 Volt AC/DC
Operating Time	20-55 ms Closing/40-70 ms Opening
Please Note	Electronic Coil
Width	90 mm
