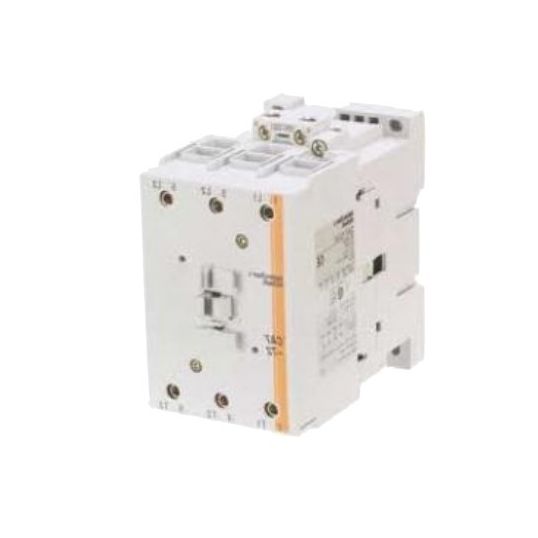

Contactor General Purpose AC Operated Non-Reversing 3 Pole 40kW 72A AC3 100A AC1 24V 3NO Main DIN Rail Mount

chevron-left
loader
Loading...

Description

chevron-down
Contactor General Purpose AC Operated Non-Reversing Standard, 24 Volt AC, AC3 Rating (kW): 40, AC3 Rating (Amps): 72 at 415 Volt, 42 at 690 Volt, AC1 Rating (Amps): 100 at 415 Volt, 3NO Main, 3 Pole, DIN Rail Mount, IP20, 122 mm Height, 72 mm Width, Conventional Coil

Key Specifications

chevron-down
Barcode (EAN-13)
9321807145208
SKU
S&SCA7-72-00/24VAC
Brand
Sprecher+Schuh
Range Name
CA7
Product Type
Contactors Non-Reversing

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Several contactor families provide a wide variety of contactor sizes, offering economy and selection
  • Compact dimensions saves panel space
Standard Pack Size 1
UNSPSC Class 39121500
UOM EA
Vendor Product CA7720024VAC
AC1 Rating (Amps) 100 Amp AC1
AC3 Rating (Amps) 72/42 Amp AC3
AC3 Rating (kW) 40 kW
Contact Configuration 3 Normally Opened
Height 122 mm
IP Rating IP20
Mounting Method DIN Rail
Number Of Poles 3 Pole
Operating Coil Voltage 24 Volt AC
Please Note Conventional Coil
Width 72 mm
