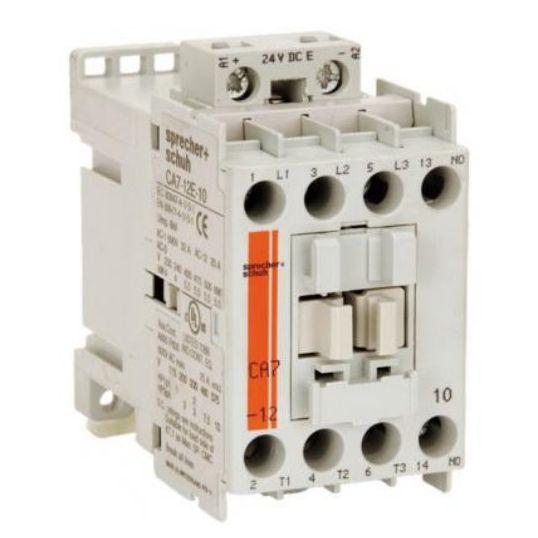

Contactor General Purpose DC Operated Non-Reversing 3 Pole 5.5kW 12A AC3 32A AC1 48VDC 3NO Main 1NO Aux DIN Rail Mount

chevron-left
loader
Loading...

Description

chevron-down
Contactor General Purpose DC Operated Non-Reversing Standard, 48 Volt DC, AC3 Rating (kW): 5.5 at 415/690 Volt, AC3 Rating (Amps): 12 at 415 Volt, 7 at 690 Volt, AC1 Rating (Amps): 32 at 415 Volt, 3NO Main, 1NO Auxiliary, 3 Pole, DIN Rail Mount, IP20, 81 mm Height, 45 mm Width, Conventional Coil

Key Specifications

chevron-down
SKU
S&SCA7-12E-10/48E
Brand
Sprecher+Schuh
Range Name
CA7
Product Type
Contactors Non-Reversing

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Several contactor families provide a wide variety of contactor sizes, offering economy and selection
  • Compact dimensions saves panel space
Standard Pack Size 1
UNSPSC Class 39121500
UOM EA
Vendor Product CA712E1048E
AC1 Rating (Amps) 32 Amp AC1
AC3 Rating (Amps) 12/7 Amp AC3
AC3 Rating (kW) 5.5 kW
Contact Configuration 3 Normally Opened & 1 Normally Opened Aux
Height 81 mm
IP Rating IP20
Mounting Method DIN Rail
Number Of Poles 3 Pole
Operating Coil Voltage 48 Volt DC
Please Note Conventional Coil
Width 45 mm
