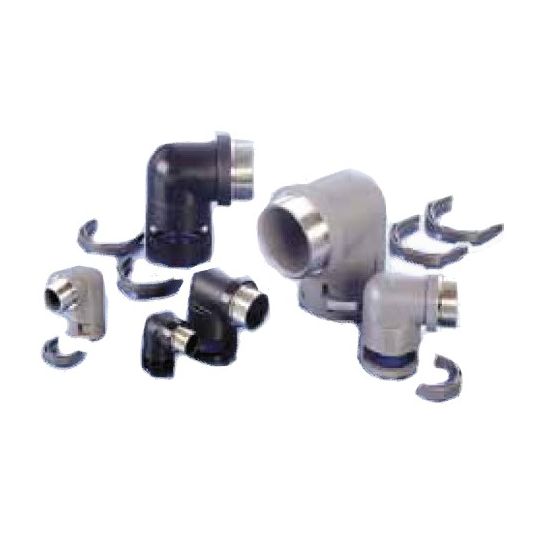

PMA Flexible Conduit Terminator Elbow 90 deg 32mm Size M32 x 1.5 Thread Reinforced Polyamide 6 Nickel Plated Brass Black

Description

Flexible Conduit Terminator, Conduit Size: 32 mm, Thread Size: M32 x 1.5, Elbow 90 deg Angle, Reinforced Polyamide 6(PA) Material, Nickel Plated Brass Finish, Black Colour, IP68 IP Rating, For Use With: Conduit Fitting, 13 mm Thread Length, Temperature: -40 to 105 deg C, 68 mm x 74.5 mm External Diameter

Key Specifications

SKU	PMANVWV-M329-13
Brand	PMA
Product Type	Glands & Terminators

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	These PMAFIX connectors are generally used in the heavy machine and railway vehicle construction sectors, where increased demands are made of the system properties Together with PMAFLEX conduits, these products offer the highest grade of safety and sealing High-grade formulated polyamide thread made of nickel-plated brass Self-extinguishing, free from halogens and cadmium Excellent impact strength Extremely high thread and system connection strength
Standard Pack Size	1
UNSPSC Class	39131700
UOM	EA
Vendor Product	NVWV-M329-13
Angle	Elbow 90 deg
Colour	Black
Conduit Size	32 mm
External Diameter	68 x 74.5mm
For Use With	Conduit Fitting
IP Rating	IP68
Temperature	-40 to 105 deg C
Thread Length	13mm
Thread Size	M32 x 1.5
