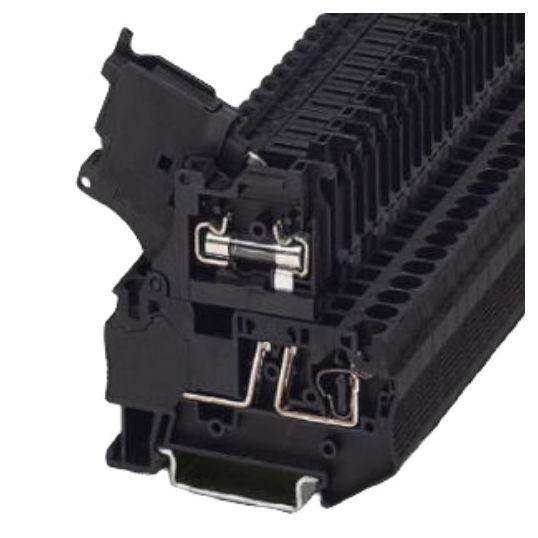

Phoenix Contact Fused Terminal Block Spring Cage 2 Wire 1 Level 0.08-6mm Black Polyamide

$Phoenix_Contact\Phoenix_Contact_3036369.jpg$

Description

Fuse Modular Terminal Block, 0.08-6 mm, 2 Conductors, 500 Volt, 6 kV Rated Surge Voltage, 6.3 Amp, 8-10 mm Wire Strip Length, 2 Conductor Wiring Format, 2 Connection Points, 1 Potential, 1 Level, Spring Cage Terminal, NS 35/15 - NS 35/7,5 Mounting, Polyamide Insulation, Black, -60 to 110 deg C, UL94 V0 Flammability, 61.5 mm Height, 6.2 mm Width, 62.5 mm NS 35/7,5; 70 mm NS 35/15 Depth

Key Specifications

SKU	PHO3036369
Brand	Phoenix Contact

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	An extremely compact design Test connection on both sides in safety lever For 5 x 20 cartridge fuse inserts
Standard Pack Size	50
UNSPSC Class	39121400
UOM	EA
Vendor Product	3036369
Colour	Black
Conductor Size	0.08-6mm
Current Rating	6.3 Amp
Wiring Format	2 Conductor
Height	61.5 mm
Width	6.2 mm
Depth	62.5 mm NS 35/75 - 70 mm NS 35/15
Temperature	-60 to 110 deg C
Terminal Type	Spring Cage
Number of Connection Points	2
Number of Levels	1
Rated Surge Voltage	6 kV
Number of Potentials	1
Mounting Method	NS 35/15 - NS 35/75
Wire Strip Length	8-10 mm
Insulation Material	Polyamide
Number of Conductors	2
Flammability	UL94 V0
Voltage Rating	500 Volt
