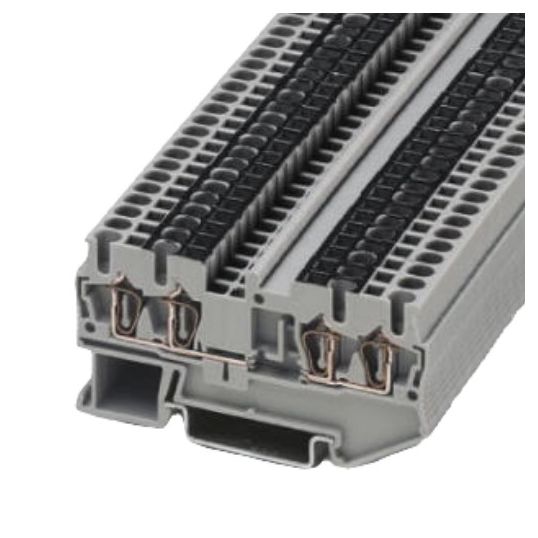

Phoenix Contact Rail Terminal Block Spring Cage 2 Wire 1 Level 0.08-4mm Grey Polyamide

Description

Rail Terminal Block, 800 Volt, Rated Surge Voltage: 8 kV, 22 Amp, 0.08-4mm Conductor, 2 Conductors, Wire Strip Length: 8 to 10 mm, Wiring Format: 2 Conductor, 4 Connection Points, 1 Potentials, 1 Level, Spring Cage Terminal, NS 35/15, Insulation Material: Polyamide, Grey, -60 to 105 deg C, Flammability: V0, Height: 36.5 mm NS 35/7,5, 44 mm NS 35/15, 72 mm Width, 5.2 mm Depth

Key Specifications

SKU	PHO3031636
Brand	Phoenix Contact
Product Type	Rail Terminal Blocks

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Double marker carriers can be used to clearly mark the feed-through levels These four-conductor spring-cage terminal blocks feature an interrupted power rail in the terminal center
Standard Pack Size	50
UNSPSC Class	39121400
UOM	EA
Vendor Product	3031636
Colour	Grey
Conductor Size	0.08-4mm
Current Rating	22 Amp
Flammability	V0
Depth	5.2 mm
Height	36.5 mm NS 35/75; 44 mm NS 35/15
Insulation Material	Polyamide
Number of Levels	1
Number of Conductors	2
Number of Potentials	1
Mounting Method	NS 35/15 - NS 35/75
Number of Connection Points	4
Rated Surge Voltage	8 kV
Terminal Type	Spring Cage
Voltage Rating	800 Volt
Width	72 mm
Wire Strip Length	8-10 mm
Wiring Format	2 Conductor
