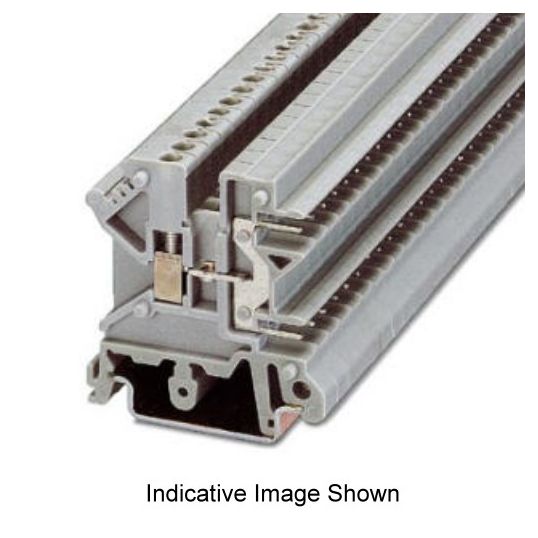

Phoenix Contact Rail Terminal Block Feed-Through Plug 2 Wire 2 Level 0.2-4mm Grey Polyamide

Description

Rail Terminal Block, Feed-Through, 250 Volt, Rated Surge Voltage: 4 kV, 12 Amp, 0.2-4mm Conductor, 2 Conductors, Wire Strip Length: 8 mm, Tightening Torque: 0.5 to 0.6 N/m, Wiring Format: 2 Conductor, 3 Connection Points, 2 Levels, Plug Terminal, NS 32 - NS 35/15 - NS 35/7,5 Mount, Insulation Material: Polyamide, Grey, -60 deg C, Flammability: V2, 5.08 mm Depth

Key Specifications

SKU	PHO3002034
Brand	Phoenix Contact
Product Type	Termninal Blocks

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	50
UNSPSC Class	39121400
UOM	EA
Vendor Product	3002034
Colour	Grey
Conductor Size	0.2-4mm
Current Rating	12 Amp
Flammability	V2
Depth	5.08 mm
Insulation Material	Polyamide
Number of Levels	2
Number of Conductors	2
Mounting Method	NS 32 - NS 35/75 - NS 35/15
Number of Connection Points	3
Rated Surge Voltage	4 kV
Terminal Type	Plug
Tightening Torque	0.5-0.6 Nm
Voltage Rating	250 Volt
Wire Strip Length	8 mm
Wiring Format	2 Conductor
