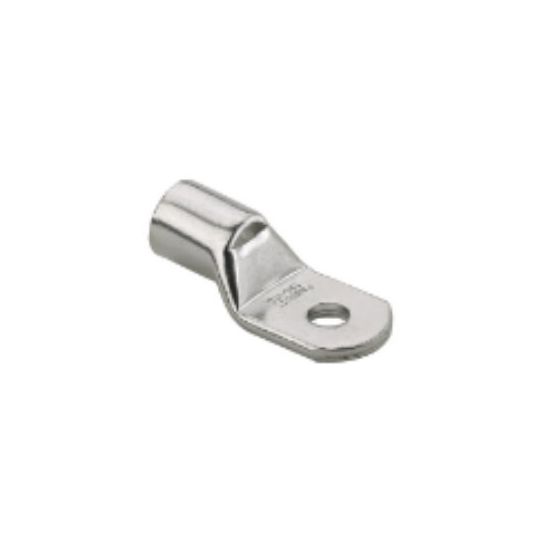

Panduit Crimp Lug Standard with Inspection Window Copper 300mm M16 Stud 94.5mm OAL

Description

Crimp Lug, Standard with Inspection Window Copper, 300 mm Conductor, M16 Stud, Standard Barrel, Palm Type: Straight, 94.5 mm Overall Length, 1 Hole, Wire Strip Length: 41.8 mm, Copper Body, Copper Conductor, Tin Plated Finish, 90 deg C, Inside Diameter: 23.5 mm, 42 mm Lug Length, 42.5 mm Lug Width, Crimping Die: P94, with Inspection Window

Key Specifications

Barcode (EAN-13)	07498376974
SKU	PANLCMA300-16-5
Brand	Panduit
Product Type	Lugs Standard Copper

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	99.9% pure copper and tin plated to a nominal thickness of 320? in (8? m) to provide a high quality connection Inspection window for standard barrel lugs allows a visually verifiable, high quality crimp Rounded tongue for one hole lugs convenient for use in tight spaces Internally bevelled wire entry for fast and easy installation Product information marked on connector for easy selection and installation Rigid stranded metric conductor Class 2r
Standard Pack Size	5
UNSPSC Class	39121400
UOM	EA
Vendor Product	LCMA300-16-5
Barrel Type	Standard
Body Material	Copper
Conductive Material	Copper
Conductor Size	300 mm
Crimping Die	P94
Finish	Tin Plated
Inside Diameter	23.5 mm
Lug Length	42 mm
Lug Width	42.5 mm
Number of Holes	1
Overall Length	94.5 mm
Palm Type	Straight
Please Note	with Inspection Window
Stud Size	M16 Stud
Temperature	90 deg C
