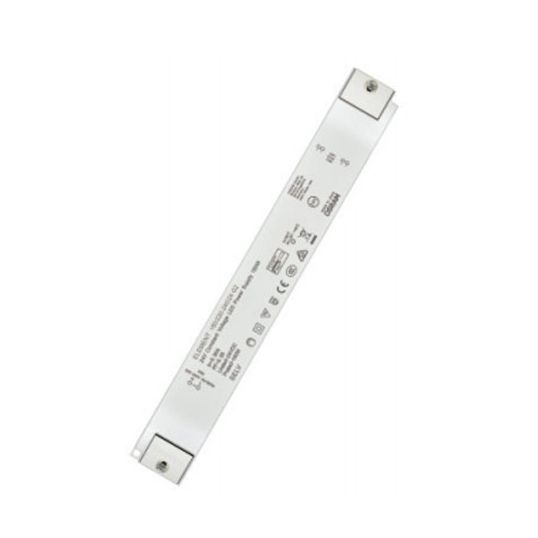

Osram LED Driver Constant Voltage 180W 220-240V Plastic IP20

Description

LED Driver Constant Voltage, Input Voltage: 220-240 Volt, Output Voltage: 24 Volt DC, 180 Watt, 7.5 Amp, 50/60 Hz, Non-Dimmable, IP20, Power Factor: >0.95, Plastic, -20 to 50 deg C, 300 mm Length, 40 mm Width, 31 mm Height

Key Specifications

SKU	OSREL180/240/24G2
Brand	Osram
Product Type	LED Drivers

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	High efficiency (up to 86%) Higher quality of light thanks to <3% output ripple current Excellent price/performance ratio Class II design for wide application Linear form factor Total Harmonic Distortion (THD): <15% Output voltage tolerance: <3% Lifetime: up to 30,000 hrs (temperature at max. tc) For Decorative lighting in hospitality, restaurants and shops, shelf lighting, cove lighting and under cabinet lighting
Standard Pack Size	1
UNSPSC Class	39101900
UOM	EA
Vendor Product	4052899605565
IP Rating	IP20
Input Voltage	220-240 Volt
Output Voltage	24 Volt DC
Power Factor	>0.95
Height	31 mm
Width	40 mm
Current	7.5 Amp
Dimmable	Non-Dimmable
Frequency	50/60 Hz
Temperature	-20 to 50 deg C
Wattage	180 Watt
