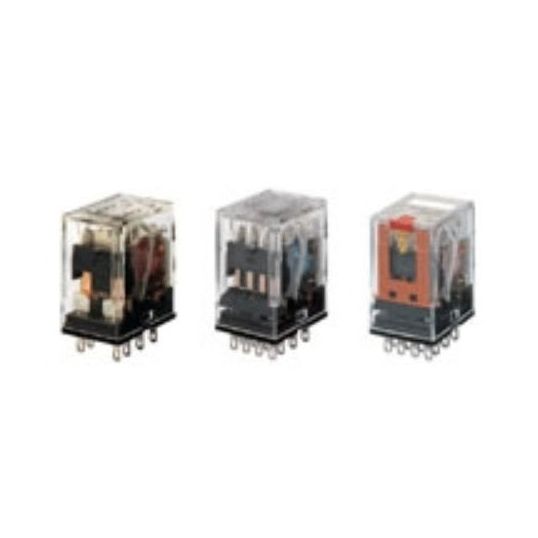

Omron General Purpose Relay Plug-In Mount 4P 4CO 4PDT 3A 48VDC 14 Pin Flat

chevron-left
loader
Loading...

Description

chevron-down
General Purpose Relay, 48 Volt DC, 3 Amp, 0.9 Watt, 14 Pin Flat, 4 Pole, 4PDT, 2725 Ohm, Operating Time: 20 Operate/Release ms, Plug-In Mount, Au Cladding + Ag Alloy, -55 to 70 deg C, 28 mm Height, 42.4 mm Width, 21.5 mm Depth

Key Specifications

chevron-down
Barcode (EAN-13)
4536854748509
SKU
OMRMY4NDC48
Brand
Omron
Product Type
Relays

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Wiring work can be shortened by as much as 60% compared to conventional screw terminal sockets by combining with push-in plus terminal sockets that feature light insertion force and strong
Standard Pack Size 1
UNSPSC Class 39122300
UOM EA
Vendor Product MY4N DC48
Contact Material Au Cladding + Ag Alloy
Current 3 Amp
Contact Configuration 4PDT
Mounting Method Plug In
Depth 21.5 mm
Height 28 mm
Number Of Poles 4 Pole
Operating Coil Voltage 48 Volt DC
Operating Time 20 Operate/Release ms
Pin Configuration 14 Pin Flat
Power Rating 0.9 Watt
Temperature -55 to 70 deg C
Resistance 2725 Ohm
Width 42.4 mm
