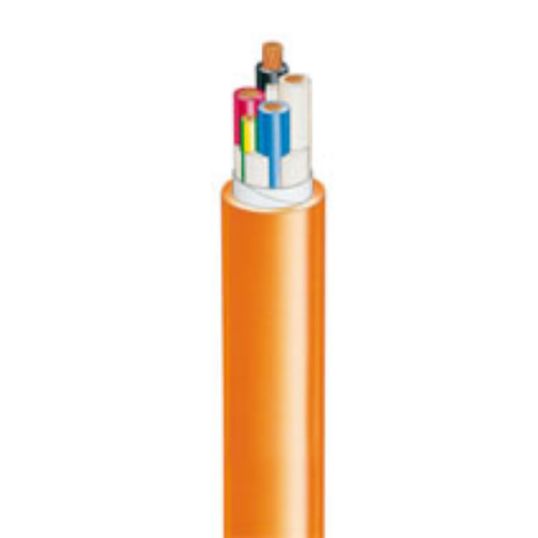

Olex 16mm Orange Circular Cable Unarmoured X-90 XLPE/PVC 1mtr

$Olex\Olex_XLPE_PVC_4C-E.jpg$

Description

Circular Cable Unarmoured, 16mm, Stranded Copper, 0.6-1 kV, 4 Core + Earth, 20.4mm Overall Diameter, 80mm Bend Radius, 0.8mm Insulation Thickness, 1.8mm Sheath Thickness, DC: 1.15 Ohm/km AC: 1.47 Ohm/km Conductor Resistance, 520 MOhm/km Insulation Resistance, X-90 XLPE Insulation, Green/Yellow Insulation, PVC Sheath, Orange Sheath, 90 deg C, AS/NZS 1125 AS/NZS 5000.1

Key Specifications

SKU	OLXHTHP15AA004OMAA
Brand	Olex
Product Type	Circular Cable Unarmoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	HTHP15AA004OMAA
Conductor Resistance	DC: 1.15 Ohm/km - AC: 1.47 Ohm/km
Bend Radius	80 mm
Conductor Size	16 mm
Conductor Type	Stranded Copper
Insulation Colour	Green/Yellow
Insulation Resistance	520 MOhm/km
Insulation Material	X-90 XLPE
Insulation Thickness	0.8 mm
Number of Cores	4 Core + Earth
Overall Diameter	20.4 mm
Sheath Colour	Orange
Sheath Material	PVC
Sheath Thickness	1.8 mm
Standards	AS/NZS 1125 AS/NZS 5000.1
Temperature	90 deg C
Voltage	0.6-1 kV
