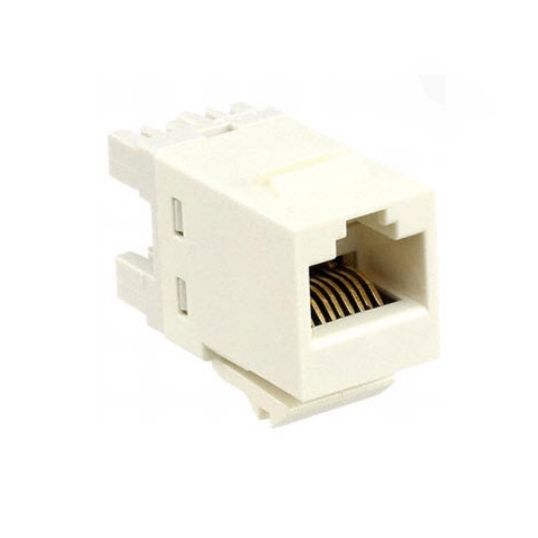

Netconnect SL110 Series Outlet Mechanism Cat6 UTP RJ45 T568A/B Alpine White

Description

Outlet Mechanism Cat6 UTP, 1.5 Amp, Solid, Stranded, 24-22 AWG, Stranded: 26-24 AWG, RJ45 Connector, Cat6 Unshielded UTP Cable, 100 mOhm Contact Resistance, 500 mOhm Insulation Resistance, 1.27 um Contact Plating Thickness, Wiring Scheme: T568A/B, Flammability: UL 94 V-0, IDC Termination, Standard Outlet, Polycarbonate Housing, Beryllium Copper Contact Base, Gold Contact Plating, Alpine White,-10 to 60 deg C, 16.13mm Height, 14.48mm Width, 30.48mm Depth

Key Specifications

SKU	NCO1-1375055-3
Brand	Netconnect
Range Name	SL Series

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	43223300
UOM	EA
Vendor Product	1-1375055-3
Cable Type	Cat6 Unshielded UTP
Colour	Alpine White
Conductor Size	24-22 AWG/Stranded: 26-24 AWG
Connector	RJ45
Contact Plating Material	Gold
Contact Base Material	Beryllium Copper
Contact Resistance	100 mOhm
Current	1.5 Amp
Depth	30.48mm
Flammability	UL 94 V-0
Height	16.13mm
Housing Material	Polycarbonate
Insulation Resistance	500 mOhm
Outlet Type	Standard
Temperature	-10 to 60 deg C
Termination Type	IDC
Width	14.48mm
Wiring Scheme	T568A/B
