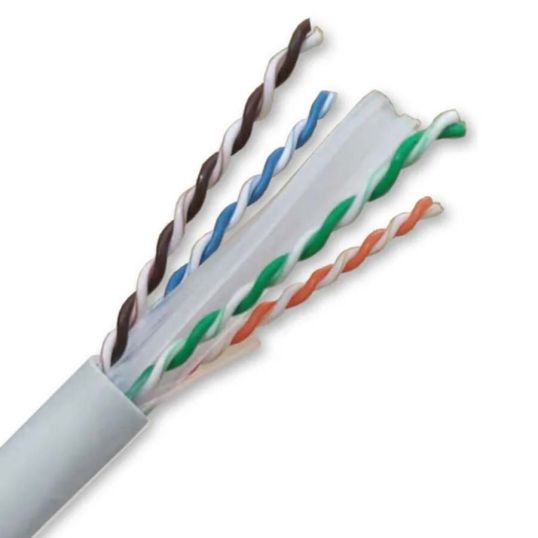

MSS Copper Ethernet Cable CAT6A U-UTP 23AWG LSZH Grey

$MSSCopper\MSSCopper_MSSCable6AU.jpg$

Description

CAT 6A 305 Metre Ethernet Cable with Solid Conductors The ideal CAT 6A cable for running from a patch panel to the wall outlet jack, this solid conductor cable is designed to support CAT 6A Link and Channel performance standards set out in AS/NZS 11801.1 and ANSI/TIA 568.2-D Featuring 23 AWG bare copper conductors and a central spline separator, this cable supports 10 Gigabit Ethernet. Also known as LAN cable, Ethernet Cable, Permanent Link Cable and Network Cable

Key Specifications

Barcode (EAN-13)	9358332000191
SKU	MSDMSSCABLE6AU
Brand	MSS Copper

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Excellent performance in C6A networks Fully standards compliant Improved central separator CAT 6A component complaint Enhance next performance True 10 gigabit performance
Standard Pack Size	1
UNSPSC Class	26121600
UOM	EA
Vendor Product	MSSCABLE6AU
Bend Radius	64 mm During Installation / 32 mm After Installation
Cable Type	Cat 6A
Conductor Material	Annealed Bare Copper
Conductor Resistance	95 Ohm/km
Conductor Size	23 AWG
Conductor Type	Solid
Frequency Bandwidth	1-500 MHz
Insulation Material	Polyethylene
Max. Pulling Force	100 N
Outside Diameter	8 mm +/-0.5 mm
Sheath Material	LSZH
Sheath Colour	Grey
Shielded Type	U/UTP
Temperature	15 to 60 deg C
