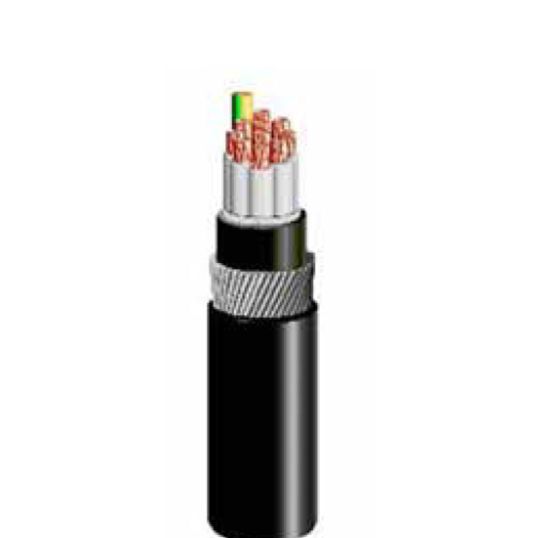

Prysmian 1.5 sq-mm Black Flexible Control Cable V-90 PVC/SWA/5V-90 PVC 100mtr

$Prysmian\Prysmian_Control_1.5mm-E.jpg$

Description

Flexible Control Cable, 1.5 sq-mm Conductor, Annealed Copper Conductor, 0.6-1 kV, 12 Core + Earth, 22.3 mm Overall Diameter, DC: 13.6 Ohm/km Conductor, 0.8 mm Insulation Thickness, 270 mm During Installation Bend Radius, Steel Wire Armour, V-90 PVC Insulation, 5V-90 PVC Sheath, Black Sheath

Key Specifications

Barcode (EAN-13)	9310835049213
SKU	MMCCEC12PNPWB7/0.50
Brand	Prysmian

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	20199941
Voltage	0.6-1 kV
Conductor Type	Annealed Copper
Sheath Colour	Black
Overall Diameter	22.3 mm
Temperature	75 deg C
Number of Cores	12 Core + Earth
Armour Material	Steel Wire
Bend Radius	270 mm During Installation
Conductor Resistance	DC: 13.6 Ohm/km
Insulation Colour	White with Black numbering / Green / Yellow
Insulation Material	V-90 PVC
Insulation Thickness	0.8 mm
Sheath Material	5V-90 PVC
