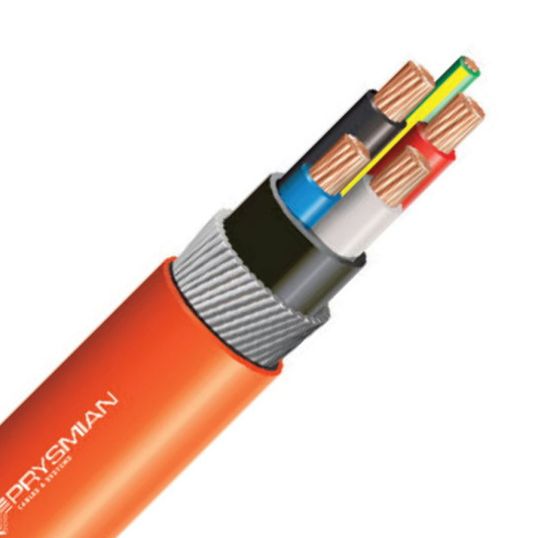

Prysmian 2.5 mm Orange Circular Cable Armoured PVC/Steel Wire/PVC 100mtr

$Prysmian\Prysmian_Circular_Armoured_4C-E.jpg$

Description

Circular Power Cable, Armoured, 4 Core & Earth, 2.5 mm, Plain Annealed Copper, 0.6/1 kV, 7/0.67 mm Strands, 2 mm Nominal Diameter, 2.5 mm Earth Conductor, 12.3 mm Bedding Diameter, 14.8 mm Diameter Over Armour, 18.8 mm Overall Diameter, 225 mm Bend Radius, 0.8 mm Insulation Thickness, Conductor Resistanc: DC: 7.41 Ohm/km, Steel Wire Armour, V-90 PVC Insulation, 5V-90 PVC Sheath, Red White Blue Black Green/Yellow Cores, Orange Sheath, 75 deg C, AS/NZS 5000.1

Key Specifications

Barcode (EAN-13)	9310835055276
SKU	MMCCEB04PNPLG7/0.67
Brand	Prysmian
Product Type	Circular Cable Armoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	20199700
Bedding Diameter	12.3 mm
Armour Material	Steel Wire
Bend Radius	225 mm
Conductor Size	2.5 mm
Conductor Resistance	DC: 7.41 Ohm/km
Core Colours	Black/Blue/Red/White/Green/Yellow
Conductor Type	Annealed Copper
Diameter Over Armour	14.8 mm
Earth Conductor Size	2.5 mm
Insulation Material	PVC
Insulation Thickness	0.8 mm
Nominal Diameter	2 mm
Number of Cores	4 Core + Earth
Overall Diameter	18.8 mm
Sheath Colour	Orange
Sheath Material	PVC
Standards	AS/NZS 5000.1
Stranding	7/0.67 mm
Temperature	75 deg C
Voltage	0.6-1 kV
