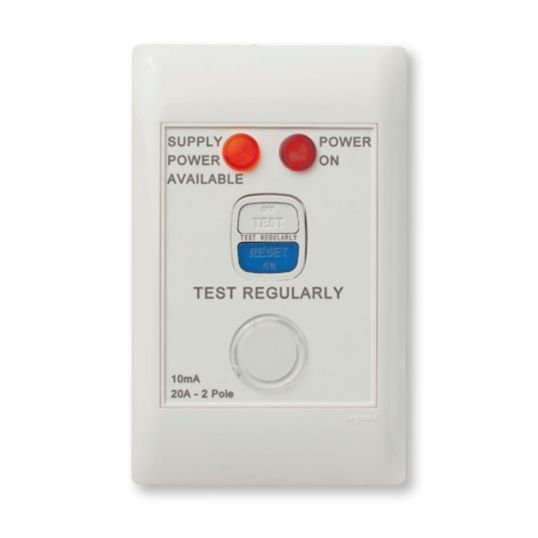

Legrand Switch RCD Protected Flush Mount 1 Gang 10mA20A 230/240V 2 Pole Vertical Neon Indicator White

$Legrand\Legrand_ECEL10N2WE.JPG$

Description

Switch RCD Protected, 230-240 Volt AC, 20 Amp, 50 Hz, Mounting Centres: 84 mm, 1 Gang, Trip Sensitivity: 10 mA, 2 Pole, Vertical, Flush Mount, White, 5 to 35 deg C, 118 mm Height, 74 mm Width, 10 mm Depth

Key Specifications

Barcode (EAN-13)	9321001425021
SKU	LEGECEL10N2WE
Brand	Legrand
Product Type	RCD Switrches

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Hardwired RCD protection safety switch Suitable for domestic, commercial and medical applications High-sensitivity, 10 mA tripping current 'Power available' and 'power' on neon indicators Does not trip on mains failure
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	ECEL10N2WE
Current	20 Amp
Colour	White
Depth	10mm
Frequency	50 Hz
Height	118mm
Mounting Centres	84mm
Mounting Method	Flush
Number Of Poles	2 Pole
Number Of Switches	1 Gang
Orientation	Vertical
Temperature	5 to 35 deg C
Trip Sensitivity	10 mA
Voltage	230-240 Volt
Width	74mm
