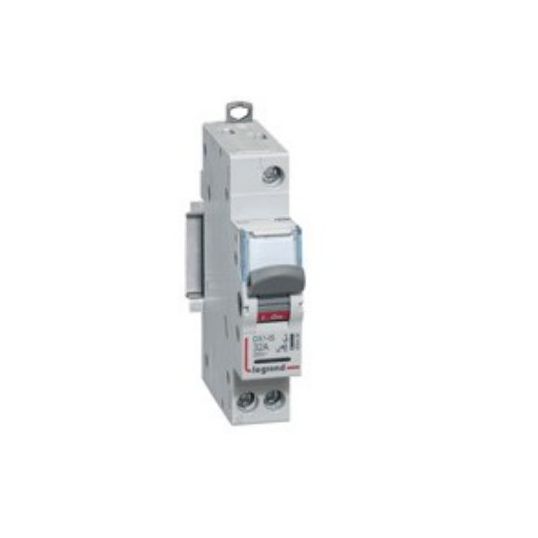

Legrand Mains Isolating Switch 2P 32A 400V 2C/O Busbar 1 Module DIN Rail Mount

Description

Mains Isolating Switch, 400 V, 32 Amp, 50/60 Hz, 0.92 W, 2 Poles, 1 Modules, 17.8mm Module Width, 2C/O, 1.5-10 mm Flexible, 1.5-16 mm Rigid Conductor, Busbar, IP20, DIN Rail, Plastic, Grey Handle,-25 to 70 deg C, 94.8mm Height x 70.2mm Depth

Key Specifications

Barcode (EAN-13)	3245064064347
SKU	LEG406434
Brand	Legrand
Range Name	Lexic DX3
Product Type	Mains Switches

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121300
UOM	EA
Vendor Product	406434
Colour	Grey Handle
Conductor Size	1.5-10 sq-mm Flexible/1.5-16 sq-mm Rigid
Connection Type	Busbar
Current	32 Amp
Contact Configuration	2 Changeover
Dimensions	94.8 mm Height x 70.2 mm Depth
IP Rating	IP20
Frequency	50/60 Hz
Material	Plastic
Modules	1 Module 17.8mm
Mounting Method	DIN Rail
Number Of Poles	2 Pole
Power Rating	0.92 Watt
Temperature	-25 to 70 deg C
Voltage	400 Volt
