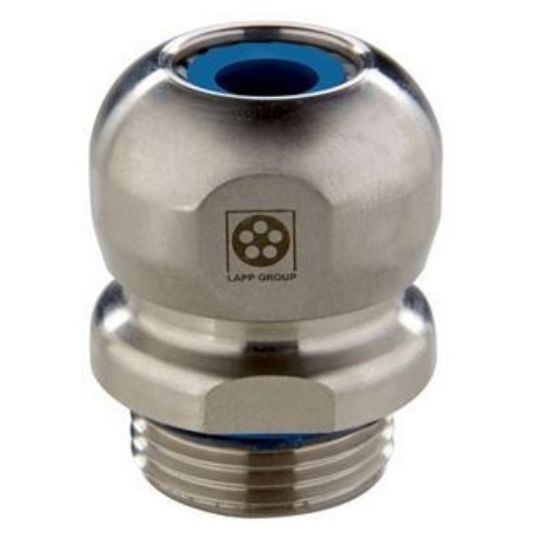

Lapp Kabel Metal Cable Gland Unarmoured Hygienic Design M16x1.5 6-10mm Stainless Steel V4A IP68

Description

Metal Cable Gland, Unarmoured, Hygienic Design, M16 x 1.5, 7 mm Thread Length, 1.5 mm Pitch, 6 mm Min. Sheath OD, 10 mm Max. Sheath OD, For Unarmoured Cable, IP68, Silicone Seal, Stainless Steel V4A Body, -40 to 100 deg C, 32.4 mm Overall Length, 5 Pieces

Key Specifications

SKU	LAP53806740
Brand	Lapp Kabel
Range Name	Skintop INOX
Product Type	Cable Glands Unarmoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Good chemical resistance Wide clamping range Mechanical resistance Temperature-resistant Suitable for outdoor use Smooth surfaces - no edges For onshore and offshore applications, bottling plants and breweries, food industry
Standard Pack Size	5
UNSPSC Class	39121400
UOM	EA
Vendor Product	53806740
For Use With	Unarmoured Cable
IP Rating	IP68
Body Material	Stainless Steel V4A
Overall Length	32.4 mm
Max. Sheath OD	10 mm
Min. Sheath OD	6 mm
Seal Material	Silicone
Temperature	-40 to 100 deg C
Thread Length	7 mm
Thread Pitch	1.5 mm
Thread Size	M16 x 1.5
